When it comes to diagnosing electrical systems, accuracy and reliability are essential. Whether you’re working in a professional repair shop, maintaining a fleet, or troubleshooting battery and charging issues on industrial, fleet, or passenger vehicles with gas- or diesel-powered engines, having the right tools makes all the difference. Engineered for real-world load testing, these testers remain an industry standard for assessing battery health, starter draw, and charging system performance.
In this blog, we’ll explain what carbon pile testing is, why it matters, and how to choose the right AutoMeter Carbon Pile model for your specific needs.
What Is a Carbon Pile Battery Tester?
A carbon pile tester applies a controlled, adjustable load to a battery using a heavy-duty carbon resistor stack. This simulates real starting conditions by placing the battery under heavy demand, allowing you to measure:
- Battery voltage drop under load
- Cold Cranking Amp (CCA) performance
- Starter current draw
- Alternator output
Unlike digital conductance testers, carbon pile testers provide a true load test, making them ideal for diagnosing borderline batteries and intermittent electrical issues.
Why Choose AutoMeter Carbon Pile Testers?
AutoMeter’s Carbon Pile Series is built for professionals who need repeatable, dependable results for electrical load testing across a wide range of applications. AutoMeter carbon pile testers have stood the test of time, and their results have been proven for over 50 years.
Key benefits include:
- Heavy-duty application for shop environments
- High-current load capacity for large batteries
- Accurate digital and large analog gauges for real-time readings
- Trusted performance for decades in automotive, diesel, and motorsports applications
Choosing the Right AutoMeter Carbon Pile Model
AutoMeter offers multiple carbon pile testers, each tailored to your unique needs. Understanding how you’ll use the tester is the key to selecting the right model.

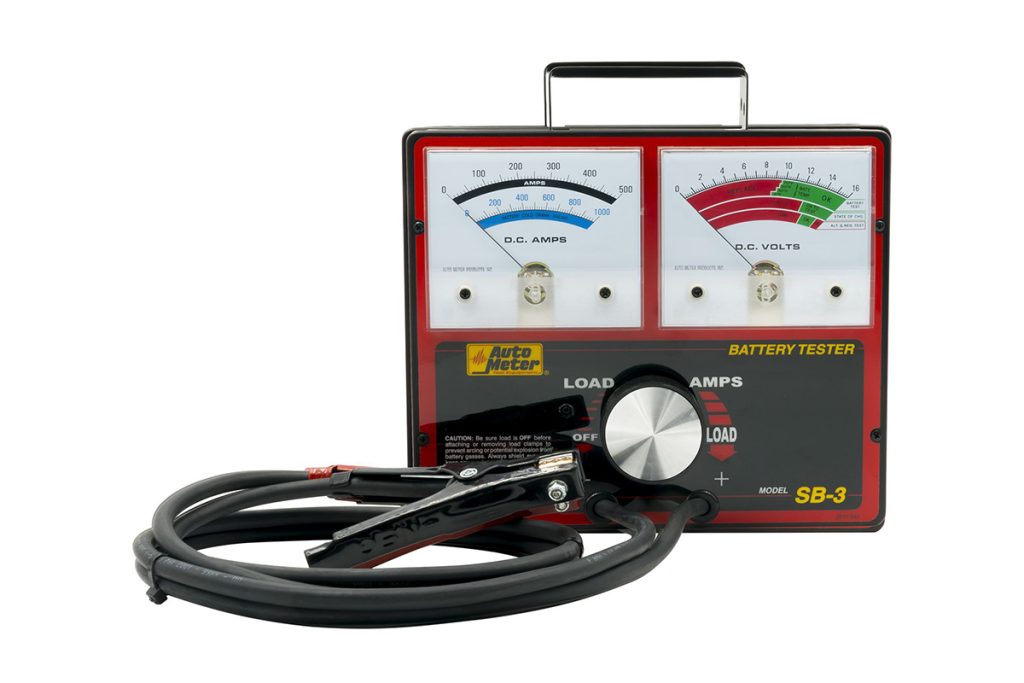

SB-3: 500 Amp Variable Load Battery/Electrical System Tester
SB-3
The SB-3 500 Amp Variable Load Battery and Electrical System Tester is a practical, easy-to-use solution for light and standard duty vehicles. Capable of inducing a 500-amp load, the SB-3 is designed to test batteries rated up to 1,000 cold cranking amps (CCA), making it ideal for everyday automotive diagnostics.
Well-suited for DIY enthusiasts and small repair shops, the SB-3 is perfect for routine battery and charging system checks. Its straightforward operation and reliable load testing capabilities help users quickly assess battery health and identify potential electrical issues without the complexity of heavy-duty shop equipment.

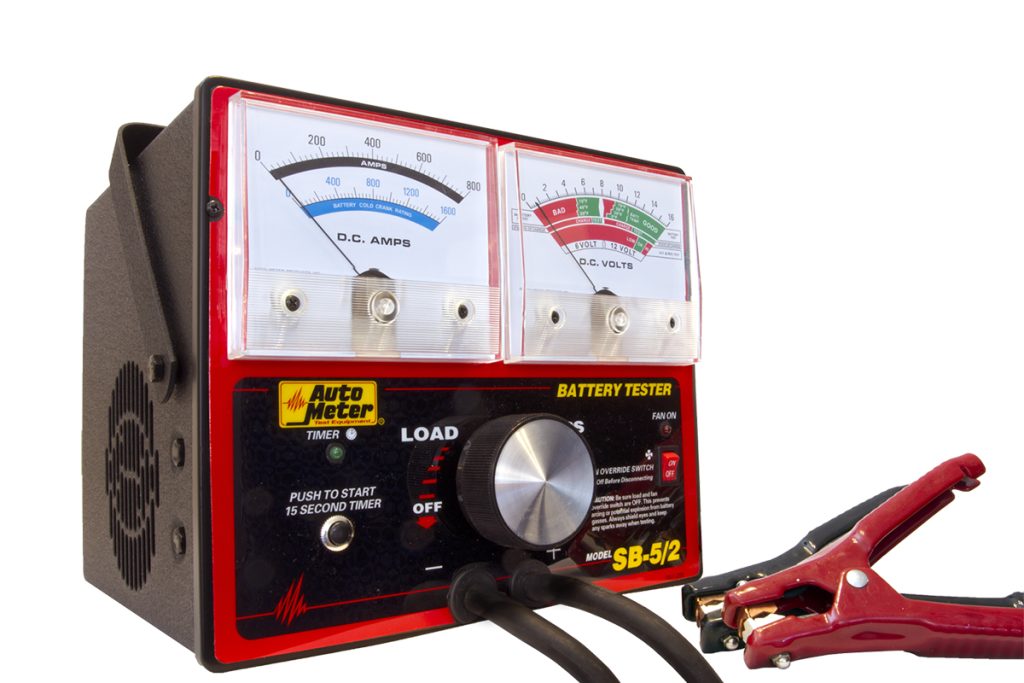

SB-5/2: 800 Amp Variable Load Battery/Electrical System Tester
SB-5/2
The SB-5/2 800 Amp Variable Load Battery and Electrical System Tester is designed for high-demand applications, capable of inducing an 800-amp load and testing batteries up to 1,600 CCA. It’s ideal for heavy-duty and industrial vehicles, while still versatile enough for passenger cars and pickup trucks.
A built-in 15-second timer ensures proper and consistent battery load testing, making the SB-5/2 a reliable choice for professional shops that require accurate, high-capacity electrical system diagnostics.

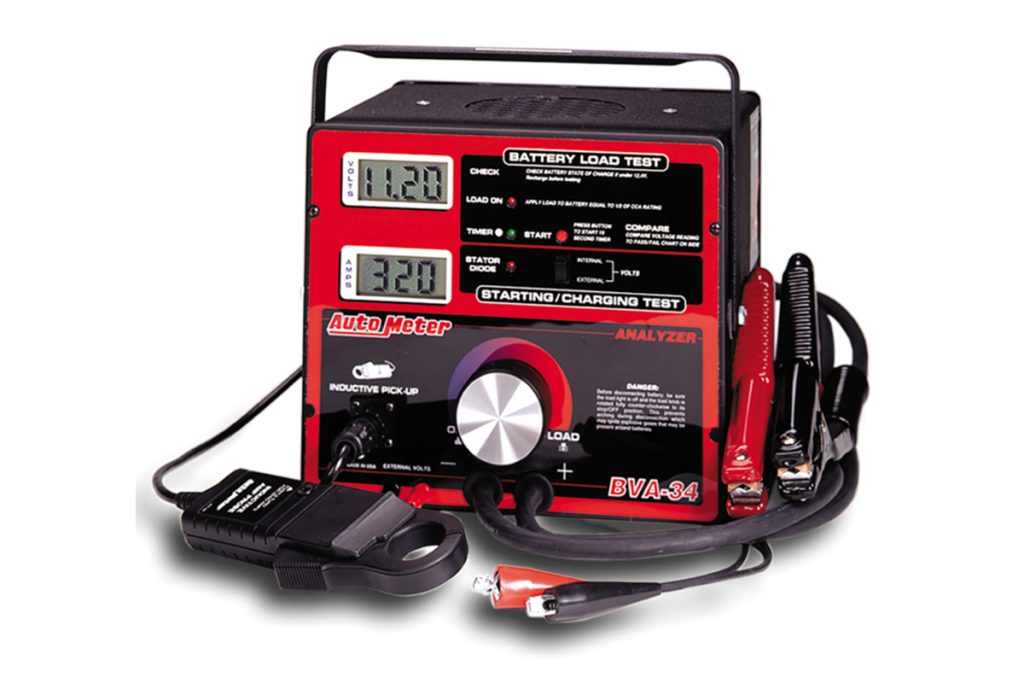

BVA-34: 800 Amp Variable Load Battery/Electrical System Tester
BVA-34
The BVA-34 800 Amp Variable 12 Volt Load Battery and Electrical System Tester is designed for technicians who need powerful testing capabilities in a compact, portable package. Housed in a small, easy-to-carry case, the BVA-34 is more portable than larger models like the BVA-36/2, making it ideal for shops that require mobility without sacrificing performance.
Despite its compact size, the BVA-34 delivers serious testing power. With an 800-amp variable load capacity, it’s well-suited for passenger vehicles, pickup trucks, heavy-duty, and industrial applications. This versatility makes it an excellent choice for high-traffic repair shops that service a wide range of vehicle types.
The digital display provides clear, easy-to-read results, while the built-in 15-second timer helps ensure accurate and consistent battery load testing every time. In addition to standard battery testing, the BVA-34 can perform voltage drop (V-drop) testing under load, a critical function for verifying the integrity of battery cables and electrical connections under real-world conditions. For technicians working on demanding electrical systems in commercial, industrial, or fleet environments, the BVA-34 offers the perfect balance of portability, power, and precision to help diagnose battery and electrical issues quickly and confidently.

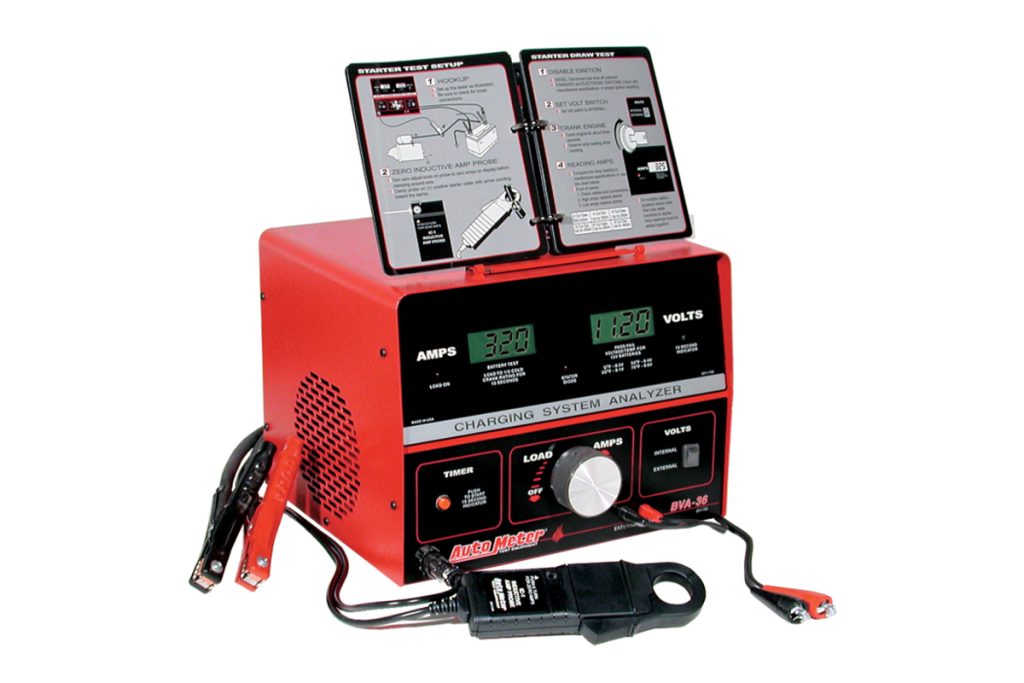

BVA-36/2: 800 Amp Variable Load Battery/Electrical System Tester
BVA-36/2
The BVA-36/2 800 Amp Variable Load Battery and Electrical System Tester is a heavy-duty, shop-ready diagnostic tool designed for stationary use or optional cart mounting. Built for professional environments, it’s ideal for high-volume repair shops, fleet service centers, and industrial applications. A digital display and built-in 15-second timer ensure accurate and consistent battery load testing.
This unit is compatible with passenger vehicles, light-duty trucks, heavy-duty, and industrial equipment. The BVA-36/2 can also be used to perform voltage-drop testing under load, helping verify battery cable and connection integrity. A top-mounted laminated flip chart provides a quick reference and efficient workflow in the service bay.

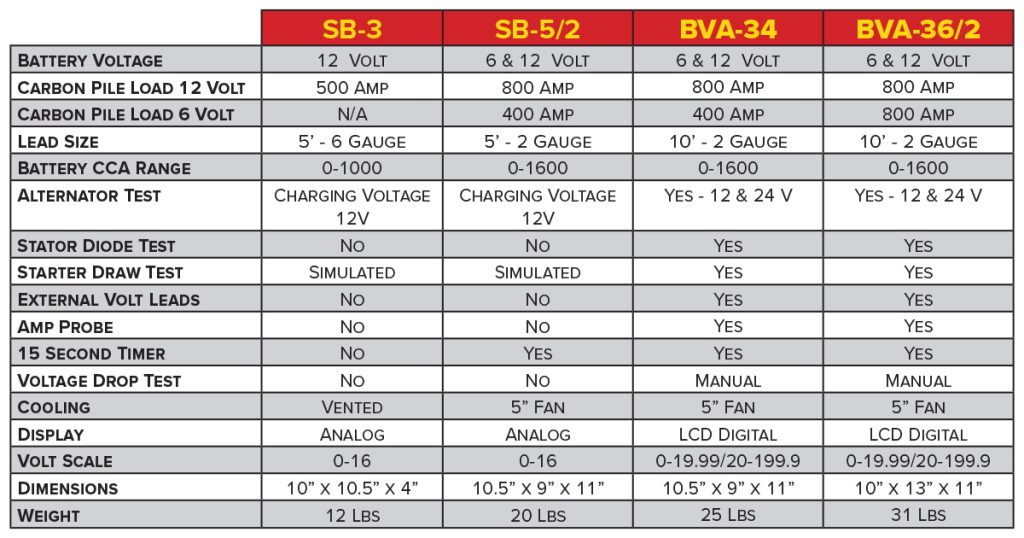

Selecting the Right Carbon Pile Tester
Choosing the right AutoMeter Carbon Pile tester comes down to battery size, testing frequency, and application. Light-duty vehicles, professional shop environments, and heavy-duty diesel applications all have different demands and AutoMeter offers a solution for each.
AutoMeter Carbon Pile testers are considered the industry standard by many for over 50 years. No matter which model you choose, AutoMeter’s Carbon Pile Series ensures you’re diagnosing batteries with confidence, accuracy, and reliability.
