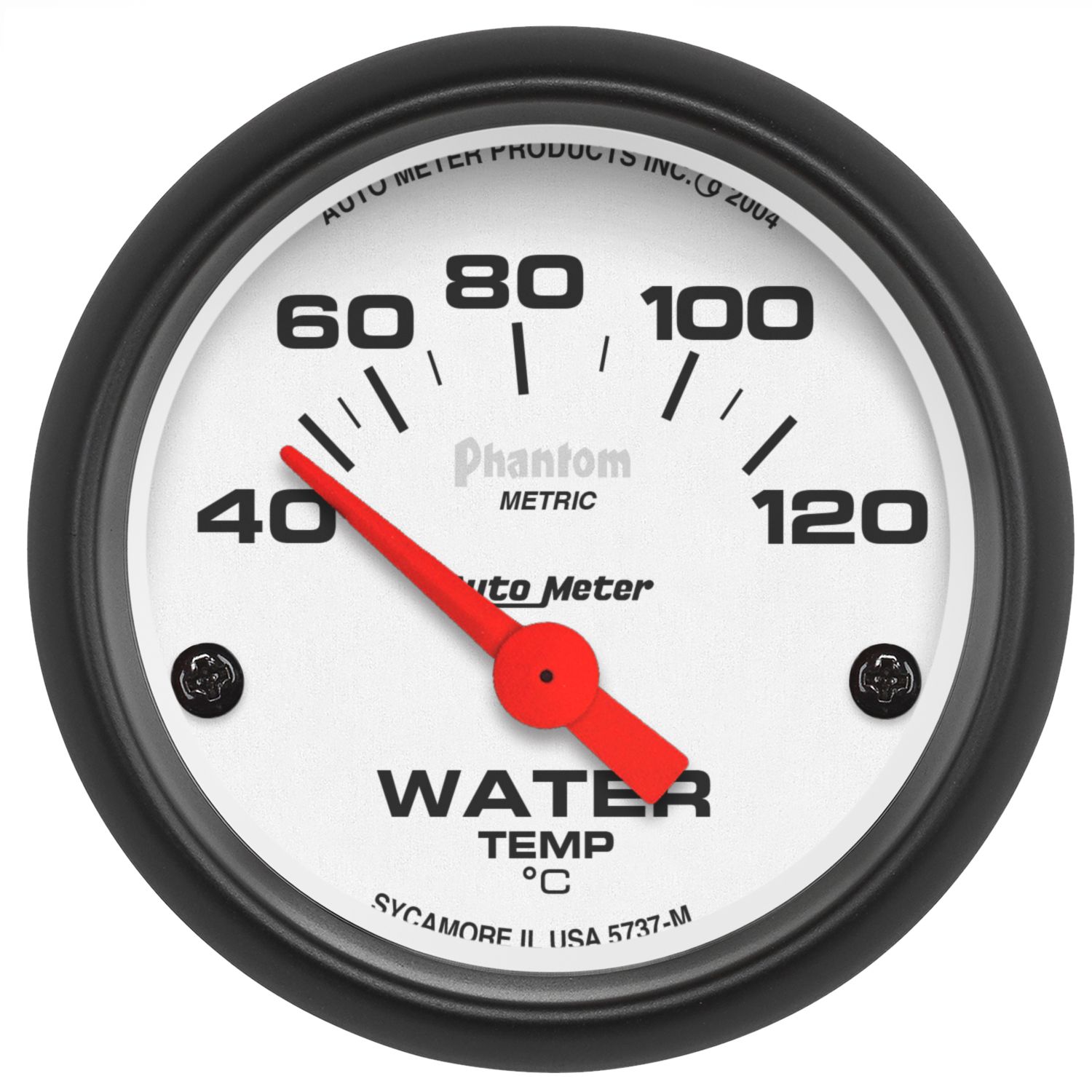

2-1/16" WATER TEMPERATURE, 40-120 °C, AIR-CORE, PHANTOM

2-1/16" WATER TEMPERATURE, 40-120 °C, AIR-CORE, PHANTOM

Product # 5737-M
$72.95

OR
  • 2-1/16" (52.4mm)
  • Air-Core Air-Core
  • 40-120 °C
  • Incandescent
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description

A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included for a simple installation on any application.

ADDITIONAL NOTES

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
SHIPPED WITH

Sending Units

  • 2258

Adapter/Fitting

  • 3/8" NPT and 1/2" NPT adapter fittings

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 2230
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 41.37ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

Hello. I am unable to use the self grounding temperature sensor provided, do you have an ohm-temperature chart or something so I can select the correct aftermarket sensor?

Asked by: Chappie
Thank you for your inquiry. Your 5737-M uses a model 2258 sender. See the attached spec sheet link for resistance values on your sender. https://www.autometer.com/sensor_specs
Answered by: Jim from AutoMeter
Date published: 2019-01-08
