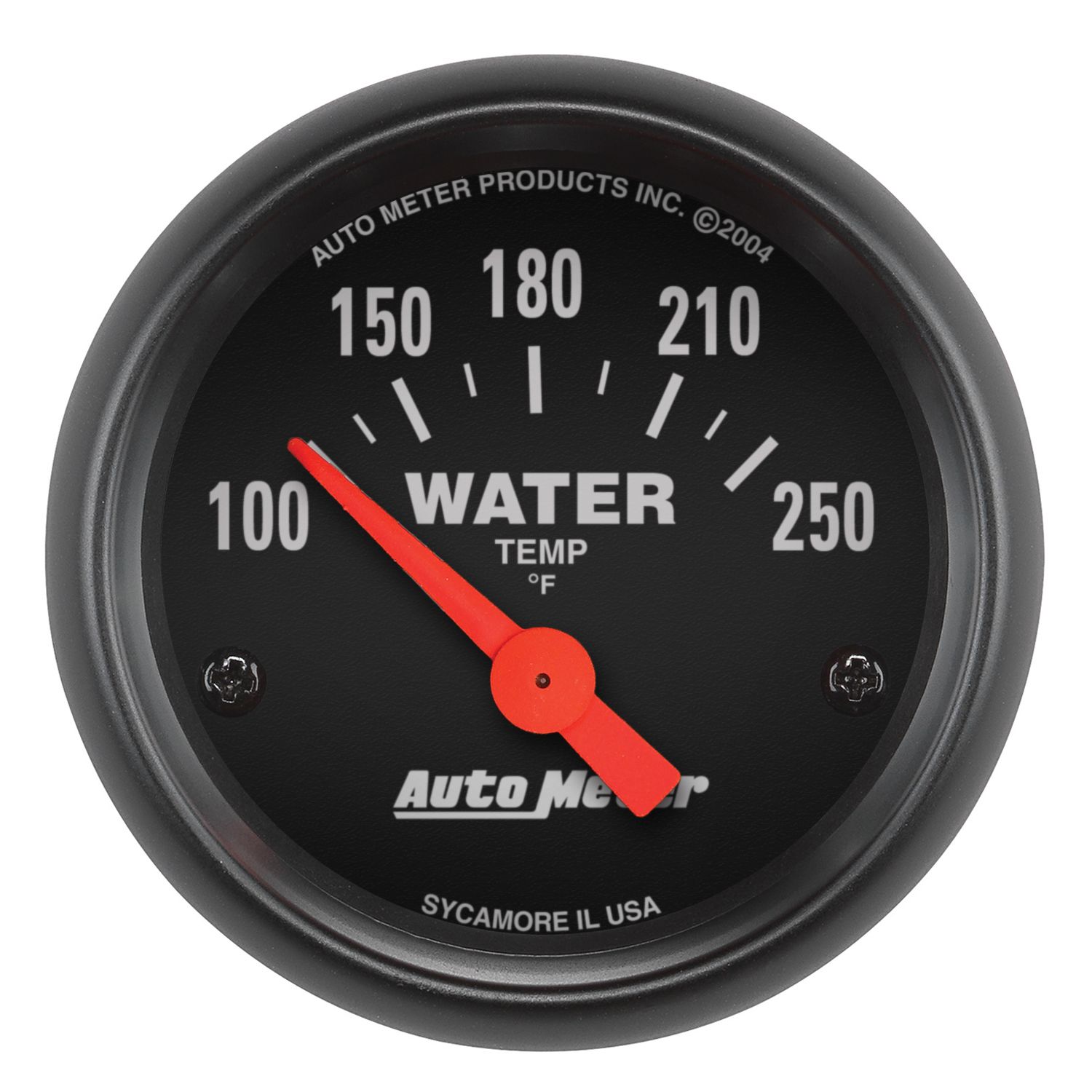

2-1/16" WATER TEMPERATURE, 100-250 °F, AIR-CORE, Z-SERIES

2-1/16" WATER TEMPERATURE, 100-250 °F, AIR-CORE, Z-SERIES

Product # 2635
$67.95

OR
  • 2-1/16" (52.4mm)
  • Air-Core Air-Core
  • 100-250 °F
  • Incandescent
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description

A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included for a simple installation on any application.

ADDITIONAL NOTES

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
SHIPPED WITH

Sending Units

  • 2258

Adapter/Fitting

  • 3/8" NPT and 1/2" NPT adapter fittings

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 2230
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 75.72ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

what is the total depth from back of bezel to deepest point?

Asked by: mgann
Thank you for the question. From the back of the bezel to the end of the mounting studs is 2-9/16". Keep in mind, however, that this would still not allow room to put the include mounting bracket over the studs and onto the gauge. Ideally you'll need about 4" behind the gauge for a proper and easy installation. In an extreme situation, with mounting studs trimmed down and custom mounting, you could get away with about 2-1/4".
Answered by: Matt from AutoMeter
Date published: 2018-04-19

What is the resistance range for this sending unit?

Asked by: Pigman
Hi there, thank you for connecting with us. This gauge works off a sender with a resistance range of approximately 1100 ohms at 100 degrees to 65 ohms at 250 degrees. The sender included is our model 2258.
Answered by: Matt from AutoMeter
Date published: 2018-04-01
