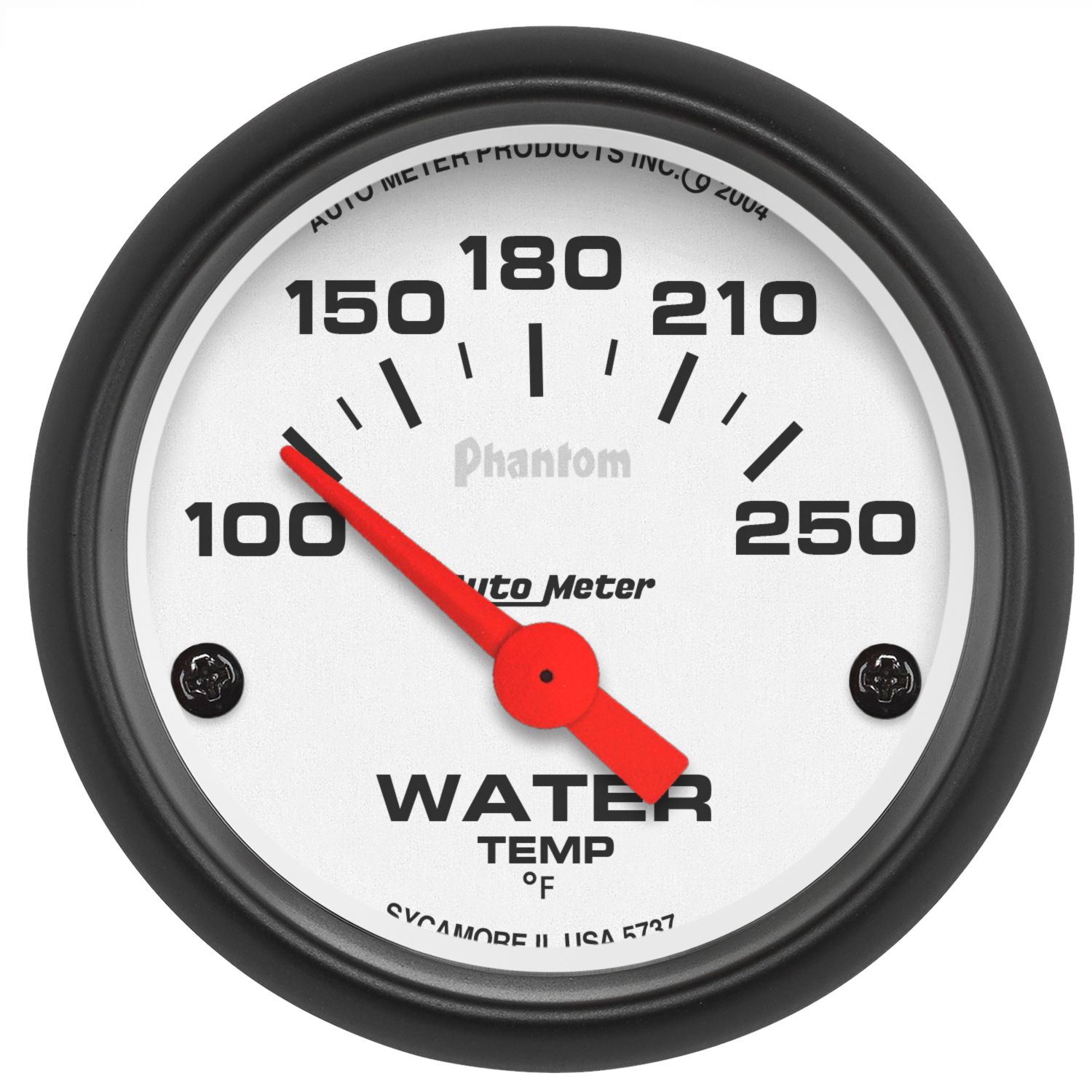

2-1/16" WATER TEMPERATURE, 100-250 °F, AIR-CORE, PHANTOM

2-1/16" WATER TEMPERATURE, 100-250 °F, AIR-CORE, PHANTOM

Product # 5737

Regular Price: $65.78

Special Price $59.20

Qty:

Add to Wishlist

SIZE:2-1/16" (52.4mm)
TYPE:Air-Core
RANGE:100-250 °F
LIGHTING:Incandescent
INSTRUCTIONS: Download

Ships in 2 Business Days
Free Shipping Over $99*
Hassle Free Returns

Description

A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included for a simple installation on any application.

ADDITIONAL NOTES

Feature Points

Traditional incandescent lighting illuminates around the perimeter of the dial
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

SHIPPED WITH

Sending Units

2258

Adapter/Fitting

3/8" NPT and 1/2" NPT adapter fittings

Bulb & Socket

3220

Light Covers

Red 3214 & Green 3215

Mounting Hardware

2230

Reviews

Questions

I have an older set of Phantom gauges and need to replace 1 water temp gauge (5737). Can you get me the dimensions to be sure this will fit in my dash.

Asked by: Victorio

Victorio, Thank you for your question. This gauge uses the exact same hole size as 5737 which is 2-1/16". The diameter of the gauge is 2-1/4", depth is 1-1/2" to the back of the gauge, and 2-5/8" to the mounting studs.

Answered by: Steve from AutoMeter

Date published: 2019-10-22

Have this water temp gauge but no sending unit for it is a short sweep phantom water temp gauge could you please send me the part number for the correct sending unit? Thank you for your time and help

Asked by: 04mach1

Thank you for contacting us. The 5737 Phantom Water Temperature will use the 2258 sender, seen here: https://www.autometer.com/short-sweep-electric-temp-gauge-sender-250-300-and-340-deg.html

Answered by: Matt from AutoMeter

Date published: 2018-07-17

Is the original Mercruiser sender ok to use with Autometer water temp gauge?

Asked by: Tord

Thank you so much for contacting us. An AutoMeter temp gauge will always need to be paired with an AutoMeter sending unit. It will not work with any OEM sender. This gauge should use the 2258 sender: https://www.autometer.com/short-sweep-electric-temp-gauge-sender-250-300-and-340-deg.html Hope this helps!

Answered by: Joseph At AutoMeter

Date published: 2018-06-12

are these gages available with chrome trim rings instead of black?

Asked by: brian2018

Hi Brain, thank you so much for contacting us. We could absolutely do a special order on this gauge to have it built with a chrome version of the Super Bezel it's equipped with. Give our team a call at 866.248.6356 and we can figure out the details for you. If you want something pretty close with a lower profile, chrome "street rod" bezel, you might want to check our this Arctic White gauge: https://www.autometer.com/2-water-temp-100-250-f-elec-arctic-white.html Hope this helps!

Answered by: Joseph Mills

Date published: 2018-03-28

Like picture of back. Replacing a Beede 944382 - it has 4 threaded studs (one mount, S,I,G & spade marked L) and one spade terminal. Will the #5737 work as a substitute?

Asked by: Rich

Thank you for the question. Unfortunately, we are not familiar with the Beede instrument. The 5737 Water Temperature gauge fits into a 2-1/16" diameter hole, features 2 mounting studs for the bracket we include, has 3 gauge connections required for operation; 12V, Ground, and Sender, and a standalone light socket that will require 12V and Ground. Most importantly, our gauge will require our sender 2258, which is included with the gauge. Here is a direct link to the instructions that will show a representation of the back: https://www.autometer.com/media/manual/2650-1079.pdf

Answered by: Matt from AutoMeter

Date published: 2018-01-09
