Quick Specs

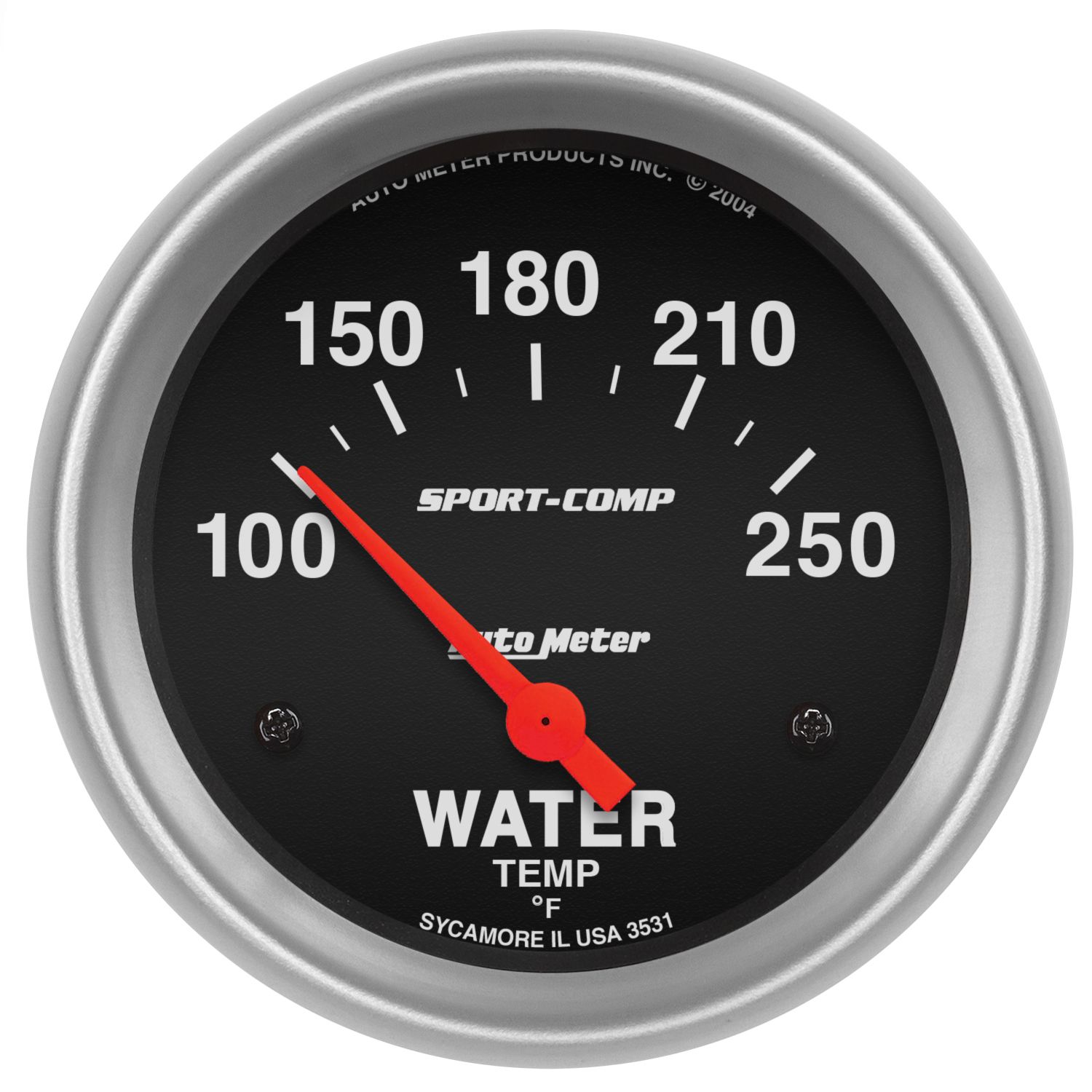

A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included for a simple installation on any application.

Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Ships With
  • 2258
  • 3/8" NPT and 1/2" NPT adapter fittings
  • 3245
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 80.55ms
  • bvseo-msg: HTTP status code of 404 was returned;


Is there a way to test this gauge other than attaching to vehicle?

Asked by: Tom58
If you're trying to just confirm the gauge is functioning, with power and ground only to the gauge, you should get some slight movement in the pointer to bring it closer to 100. If you're not able to tell by that, create a short/jumper wire between the ground terminal and sender terminal with power supplied. This should peg the gauge past max temp. You won't damage the gauge, you're simply creating zero resistance which is slightly beyond what the gauge would normally see at max temp.
Answered by: Matt from AutoMeter
Date published: 2022-01-23

What water temp sensor do I buy for this gauge ?

Asked by: Jeralt
Hello, Thank you for your question. The replacement sensor for this gauge is P/N: 2258.
Answered by: Steve from AutoMeter
Date published: 2019-09-26
