In stock


Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

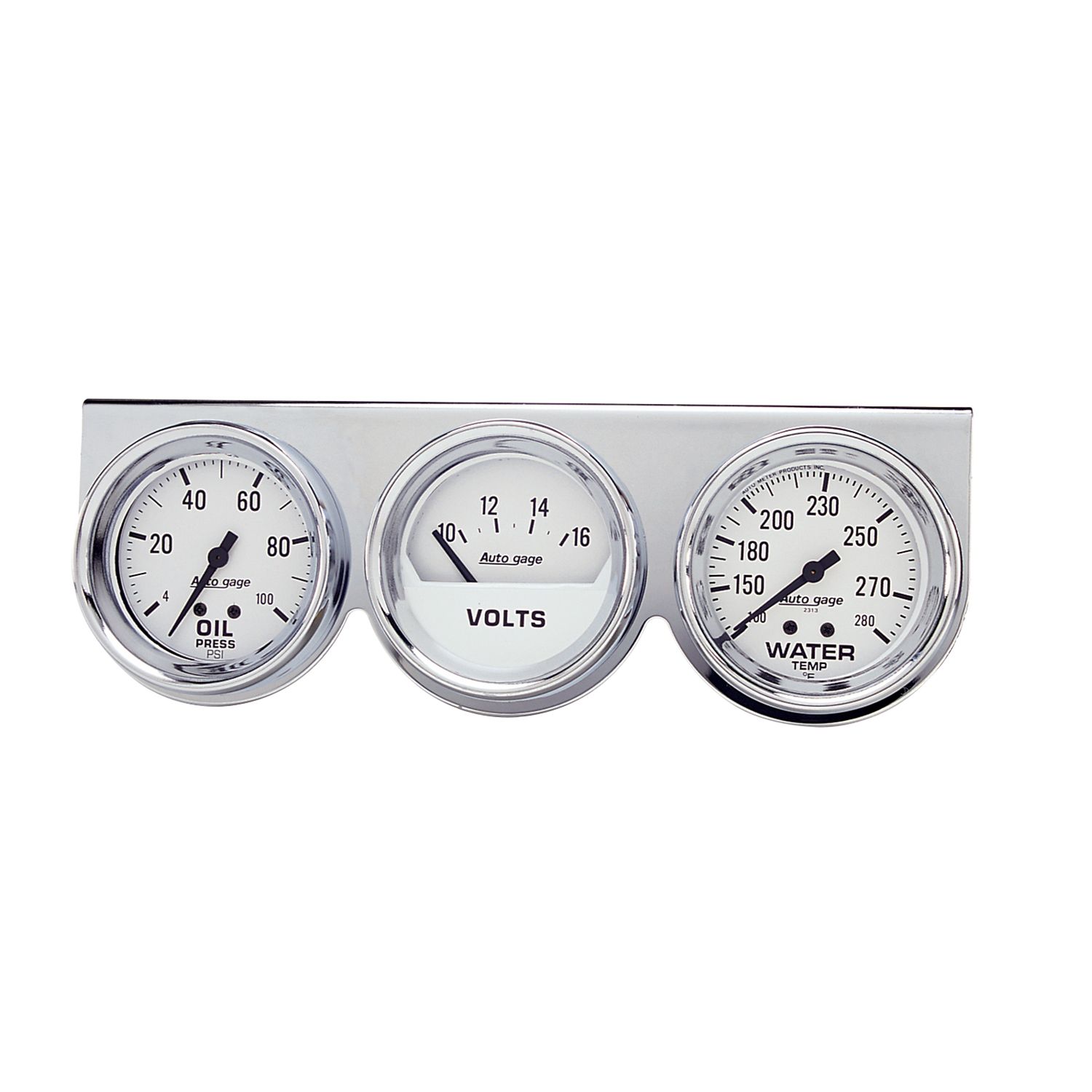

Quick Specs

  • Size:2-5/8" (66.7mm)
  • Type:Mechanical
  • Range:0-100 PSI/10-16V/100-280 °F
  • Lighting:Incandescent
  • Instructions: Download PDF


Getting great performance or saving money doesn’t have to be choice. Engineered by AutoMeter in Sycamore, IL, The Auto Gage line of instruments provide the best bang for the buck performance in the industry. For a fast street car or a weekend racer, Auto Gage provides levels of accuracy and durability unheard of in the price category. With countless wins in magazine comparison tests, the best value in gauges comes from exactly the place you’d expect it to. AutoMeter.
Feature Points
  • Includes bulb and socket assembly with red and green bulb covers
Ships With
  • 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.
  • Bracket Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 6.06ms
  • bvseo-msg: HTTP status code of 404 was returned;


Hello, might you have an actual measurement of the probe/sensor length for the water temperature gauge? Just the probe w/o the threaded piece. Thank you

Asked by: EddieVH
The water temp capillary tube is 6ft.
Answered by: Steve from AutoMeter
Date published: 2022-06-15

Does this unit come with the 6 foot temperature pickup probe?

Asked by: JayJ
Thank you for contacting us. Yes, this is the standard 6’ capillary tubing.
Answered by: Sarah from AutoMeter
Date published: 2021-09-29

Can the gauges be taken out of the bracket and be fitted in a dash opening separately?

Asked by: Jimmy 49
Thank you for your question. Yes, but you will need to remove the brackets from the gauges and cut the mounting studs in order for them to work.
Answered by: Natalia from AutoMeter
Date published: 2021-01-22

Can these gauges be removed from chrome holder and put into Autometer 3203 gauge cups?

Asked by: @central.mass.street.vans
Thank you for your question. You will need to remove the brackets from the gauges and cut the mounting studs in order for them to work. But they can be removed and installed into the 3203 cups.
Answered by: Steve from AutoMeter
Date published: 2020-03-09

Are these gauges liquid filled

Asked by: Pinch1
Thank you for your question. These unfortunately are not a liquid filled gauge. We do offer a liquid filled gauge in the Ultra-Nite and the Pro Comp series.
Answered by: Steve from AutoMeter
Date published: 2019-12-04

Is the 2-5/8" white face Water Temp Auto Gage replaceable from this Gauge Console? Mine is reading about 50 deg F high at operating temp, and rests at 160 deg F in a 65 deg F garage. Any ideas? Would the air-core 4437-SPEB fit and be a better choice?

Asked by: Daniel13457
Hi Daniel, sorry for the problem you're encountering. Unfortunately the white AutoGage instruments are not available separately. You can send the gauge into us for service, however. The 4437 and any variation would certainly work for you, but would not match the others. While not required, this form will show all the required information for sending your gauge in for service evaluation:
Answered by: Matt from AutoMeter
Date published: 2018-04-06

What is the height and width of the bracket?

Asked by: ChadsHurst
Hi Chad, thank you so much for the question. The bracket is 3.5" high and 9.3" wide.
Answered by: Matt from AutoMeter
Date published: 2018-03-01

I bought the 2399 gauge set and like to change the oil gauge to braided line, do you sell this item for 4-6"? If I like to find something off brand that fits what type of fittings coupling should I search for?

Asked by: Caviking
Thank you so much for contacting us. That gauge uses an 1/8" NPT male fitting on the back and can use any of our braided line kits: Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-02-07
