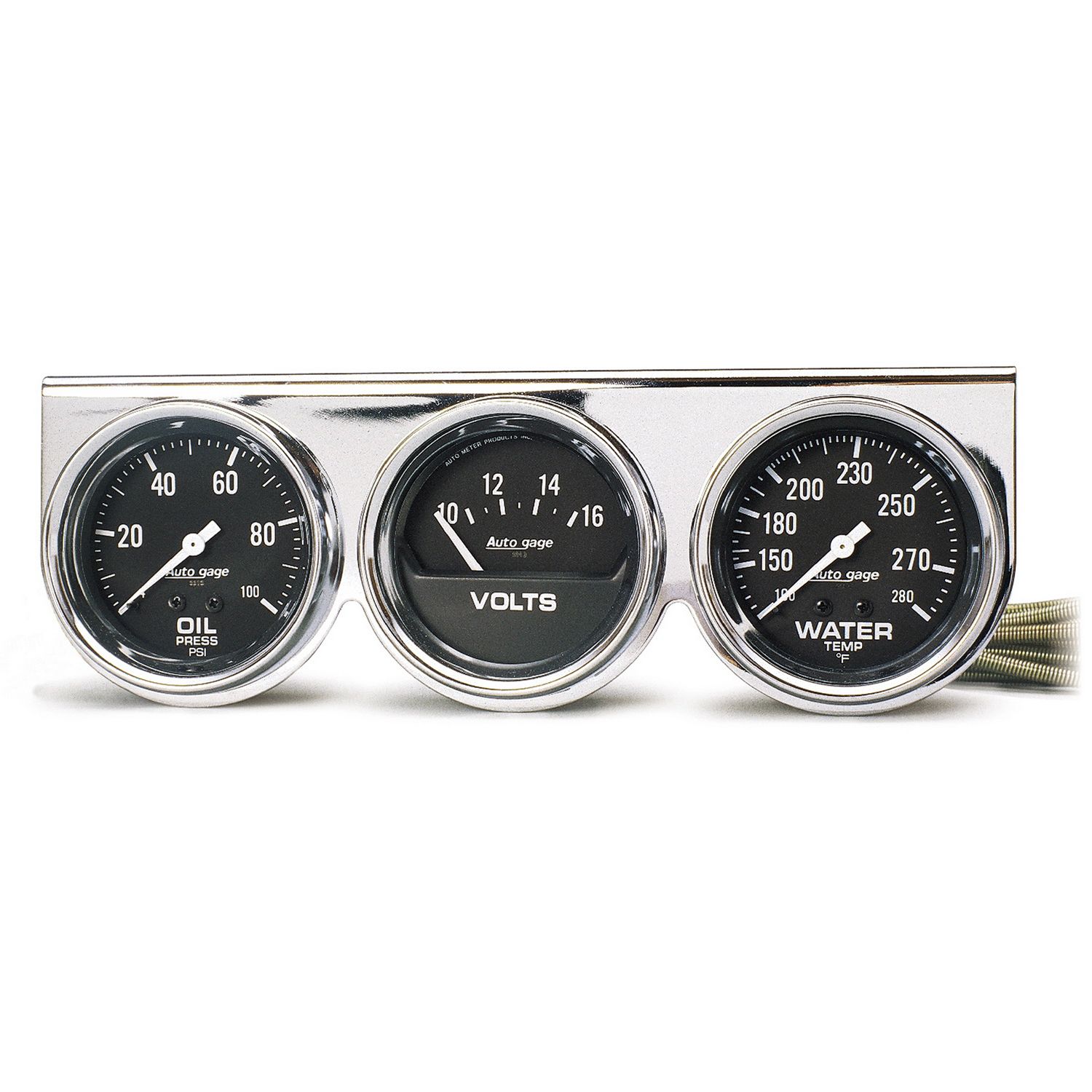

GAUGE CONSOLE, OILP/WTMP/VOLT, 2-5/8", 100 PSI/280 °F/16V, BLK DIAL, CHROME BZL, AG

GAUGE CONSOLE, OILP/WTMP/VOLT, 2-5/8", 100 PSI/280 °F/16V, BLK DIAL, CHROME BZL, AG

Product # 2399
$95.95

OR
  • 2-5/8" (66.7mm)
  • Kits
  • 0-100 PSI/10-16V/130-280 °F
  • Incandescent
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description
Getting great performance or saving money doesn’t have to be choice. Engineered by AutoMeter in Sycamore, IL, The Auto Gage line of instruments provide the best bang for the buck performance in the industry. For a fast street car or a weekend racer, Auto Gage provides levels of accuracy and durability unheard of in the price category. With countless wins in magazine comparison tests, the best value in gauges comes from exactly the place you’d expect it to. AutoMeter.
ADDITIONAL NOTES

Feature Points

  • Includes bulb and socket assembly with red and green bulb covers
SHIPPED WITH

Adapter/Fitting

  • 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.

Tubing

  • 10 ft. nylon tubing - 6 ft. Capillary Tube

Bulb & Socket

  • 2357

Mounting Hardware

  • Bracket Included
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 62.87ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

On the 2399 gauge set will a Allstar Performance part # ALL 46110-36, braided steel line work on the oil pressure gauge. Does it connect right to the gauge or do I have to buy any fittings or adapters? If so, can you provide part numbers.

Asked by: mike55
Hello Mike, thank you for your question. 2399 oil pressure gauge has a 1/8" NPT connector. If your braided steel line connects to a 1/8" fitting, yes you can use it. It looks like the line you mention will connect, however, you should double check to be sure.
Answered by: Zach from AutoMeter
Date published: 2018-09-12

Do either the 2-5/8" or 2-1/16" gauges come in a 4 or 5 gauge under dash console?

Asked by: Guitarman 387
Thank you for the question. There are no 4 or 5 gauge panels for simple under dash mount. Only single, dual, and triple. We do offer 2 x dual panels separately which you can add gauges to if you'd like to run 4. The 2 gauge panels are 2237 (2-1/16") or 3232 (2-5/8").
Answered by: Matt from AutoMeter
Date published: 2018-08-28

2-5/8" is the hole size, correct? What is the diameter of the outside (chrome bezel) of the 2399 gauges?

Asked by: bob5185
Hi Bob, thank you for the question. Yes, 2-5/8" is the hole size for each gauge. The outside diameter of the chrome bezel on each gauge is 2-7/8".
Answered by: Matt from AutoMeter
Date published: 2018-08-09

Hi I bought a gage set off Amazon model # 2399 and my temp. gage is intermittent its full on coolant and no kinks in the line im asking how I would handle warranty purchased on March 16, 2018. Thank you

Asked by: Rob 75 chevy 454
Hi Rob, thank you so much for contacting us. I would recommend contacting the Amazon seller first. If they are not responsive, you are certainly welcome to send the gauge to our service department and we will be happy to get you taken care of. Here is all the information you'll need: http://www.autometer.com/media/Service_Form.pdf Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-07-06

does meter cluster come with white face?

Asked by: marv
Hi Marv, thank you for the question. Yes, there is a white version available; model 2329 that you can see here: https://www.autometer.com/2-5-8-3-gauge-console-oil-water-volt-chrome.html
Answered by: Matt from AutoMeter
Date published: 2018-06-28

Can these gauges be easily removed from the bezel to mount in a different manner.?

Asked by: JokerBLK
Thank you so much for contacting us. These gauges are very easy to remove from the mounting bracket for repositioning. Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-06-21

looking for a tach which will match this set

Asked by: skulls-x
Thank you for connecting with us. Officially, the matching tachometer is model 2301, which can be seen here. It's a 3-3/4" pedestal mount tachometer: https://www.autometer.com/3-3-4-tach-8-000-rpm-chrome.html While not an exact match, we also offer this 2-5/8" pedestal option, model 2893 - https://www.autometer.com/2-5-8-tach-8-000-rpm-mini-chrome.html
Answered by: Matt from AutoMeter
Date published: 2018-04-24

Is this set of gauges are electronic or mechanical I’m looking for a electronic set

Asked by: Nielo2311
Thank you so much for contacting us. This particular set is mechanical. In the Auto Gage line, only the 1-1/2" mini gauge console is electronic: https://www.autometer.com/1-1-2-3-gauge-console-oil-volt-water-elec.html All of the other Auto Gage kits are electronic (with the voltmeter/ammeter obviously being electronic). There are a lot of options in the AutoMeter line though. If you'd like help with specific part numbers, hit the Chat link at the top of every page, call us at 866.248.6356 or shoot us a message here: https://www.autometer.com/resources/index/ask_a_question Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-04-02
