In stock


Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

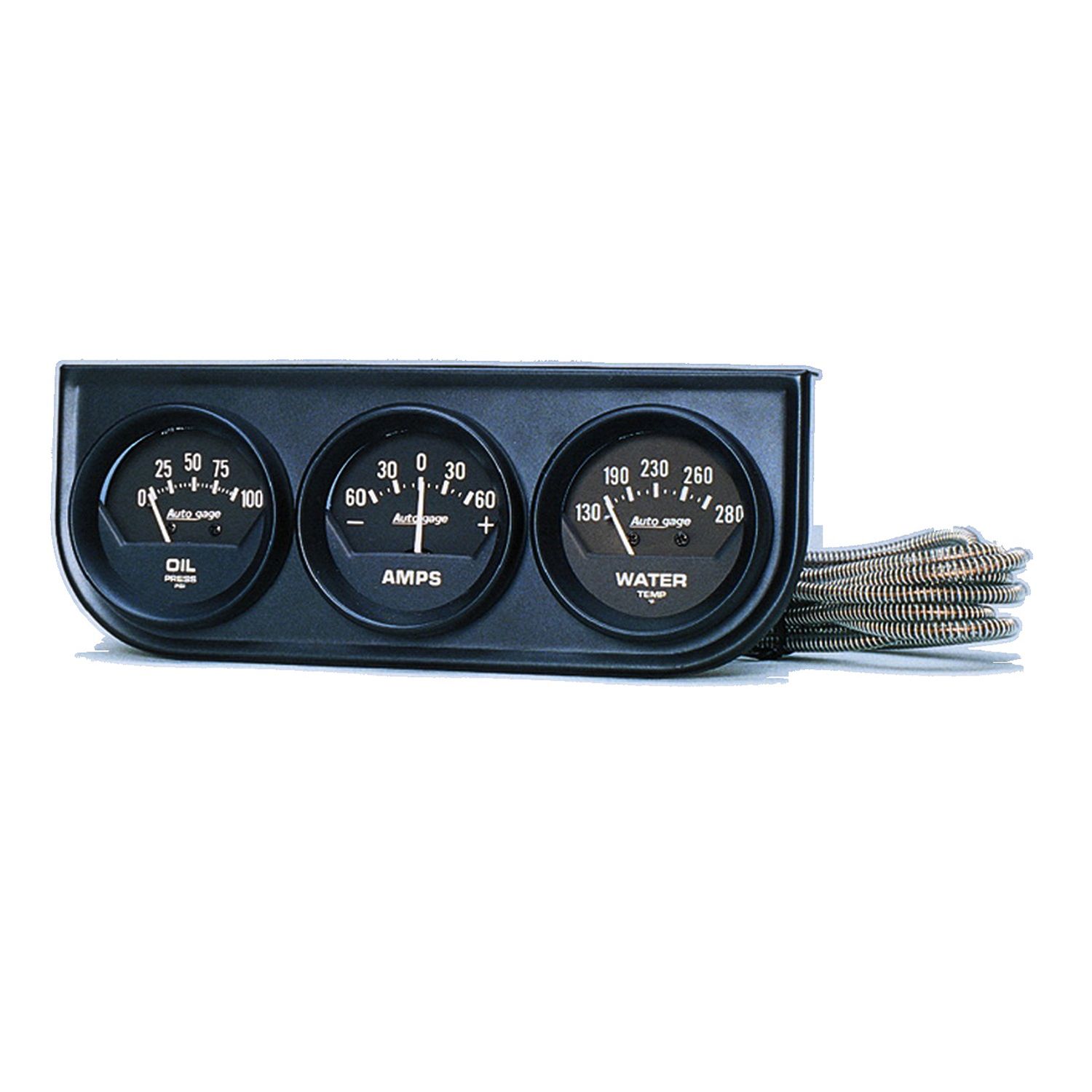

Quick Specs

  • Size:2-1/16" (52.4mm)
  • Type:Mechanical
  • Range:0-100 PSI/60-0-60 AMPS/130-280 °F
  • Lighting:Incandescent
  • Instructions: Download PDFDownload PDF


Getting great performance or saving money doesn’t have to be choice. Engineered by AutoMeter in Sycamore, IL, The Auto Gage line of instruments provide the best bang for the buck performance in the industry. For a fast street car or a weekend racer, Auto Gage provides levels of accuracy and durability unheard of in the price category. With countless wins in magazine comparison tests, the best value in gauges comes from exactly the place you’d expect it to. AutoMeter.
Feature Points
Ships With
  • 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.
  • Bracket Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 72.24ms
  • bvseo-msg: HTTP status code of 404 was returned;


Are the gauges individually removeable from the mounting bracket / & bezel ? I have an amp gauge of this series that needs to be replaced....??

Asked by: Hook 400
The gauges in this panel are all individually bracketed and removable.
Answered by: Jim from AutoMeter
Date published: 2022-04-28

Is there a recommended location to put the water temperature sending unit? Specifically is it best to place the unit in the side of the head or in the intake manifold? If it is best in the intake manifold i would it be best before or after the thermostat?

Asked by: AKMer
Thank you for your inquiry. Ideally, install the water temp sender into the intake manifold prior to the thermostat.
Answered by: Jim from AutoMeter
Date published: 2019-08-06

What is the fitting size on the back of the oil pressure gauge? compression fitting? 1/8" npt? I want to use a braided line rather than nylon, is this possible with this gauge?

Asked by: bl@ckdime
Thank you for the question. Unfortunately, due to the unique fitting on the back of our 2-1/16" AutoGage instruments, it's not feasible to adapt a braided line. The fitting is a 5/16-24 UNF, which is designed to fit the compression nut for 1/8" nylon or copper tubing. The best upgrade we can offer for line is our copper kit, model 3224.
Answered by: Matt from AutoMeter
Date published: 2018-08-07
