In stock
Product
ST270074

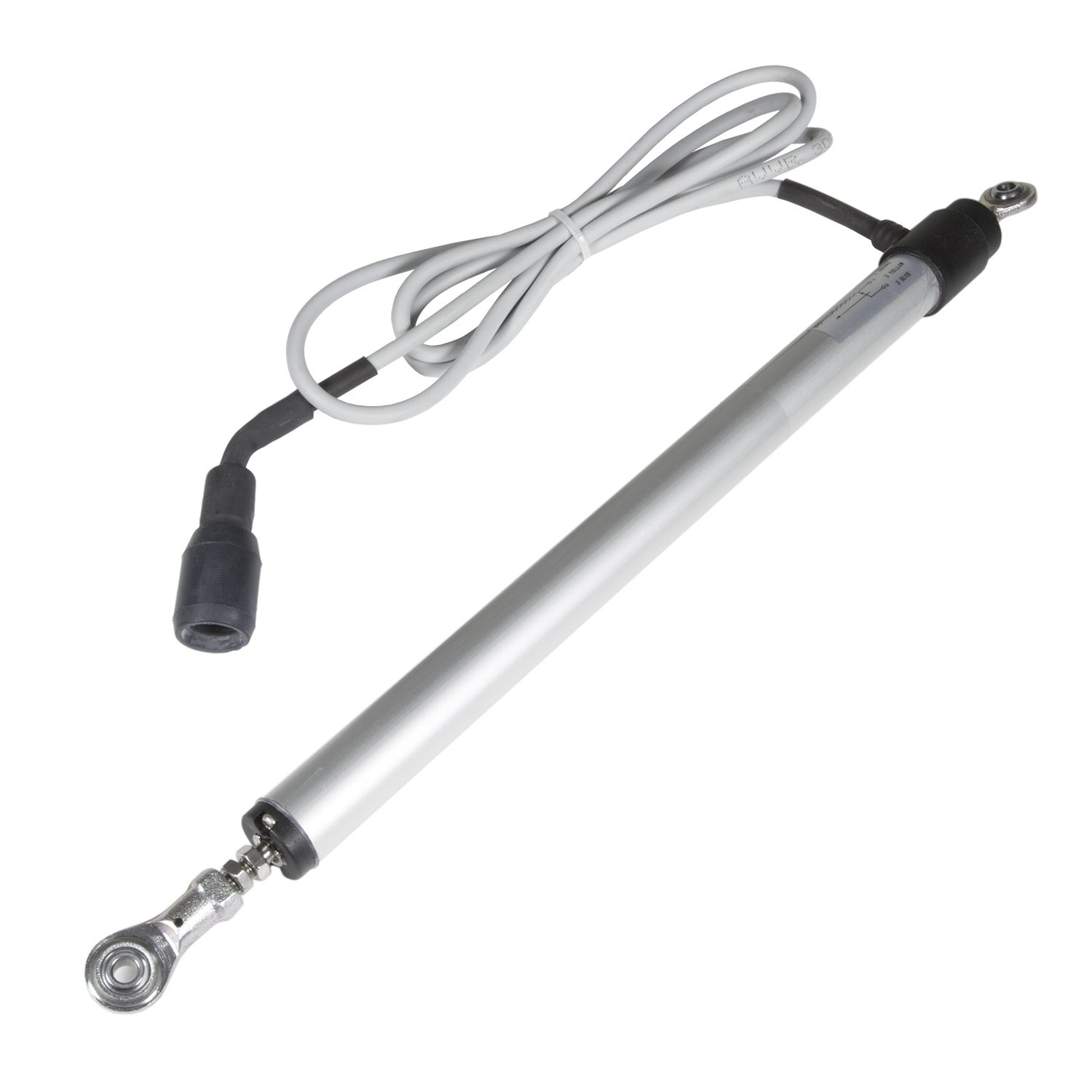

LINEAR POTENTIOMETER, CLUB, 200 MM / 8"
$359.99
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns
Quick Specs
DESCRIPTION:
Stack Clubman Linear Potentiometers provide excellent value for motorsport monitoring and measurement tasks offering sound repeatability, reliability, linearity and environmental performance. Featuring IP65 sealing, equipped with self-aligning spherical bearings, and available in stroke lengths from 50-200 mm (2-8 in.), these position sensors are pre-terminated for use with Stack data systems monitoring parameters such as damper (shock) position, pedal inputs, steering angle, aerodynamic surface deflection, and actuator travel.
Feature Points
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
- Total Electrical Travel: 200 mm (8 in.)
- Retracted Mounting Distance: 330 mm (13 in.)
- Anodised Aluminium Housing, IP65 Sealed.
- Body Length: 291 mm (11.5 in.), Body Width: 13 mm (0.5 in.)
- Spherical Bearing Mounting Hole Size: 5 mm (0.197 in.)
- Pre-terminated cable with Mini Sure Seal Connector. Length: 1,000 mm (39 in.)
- Linearity: +/- 0.05%
- Life: Greater than 25 million cycles
- Operating Temperature: -30 to +100 ºC (-22 to 212 ºF)
- Maximum Operating Speed: 5m/s
