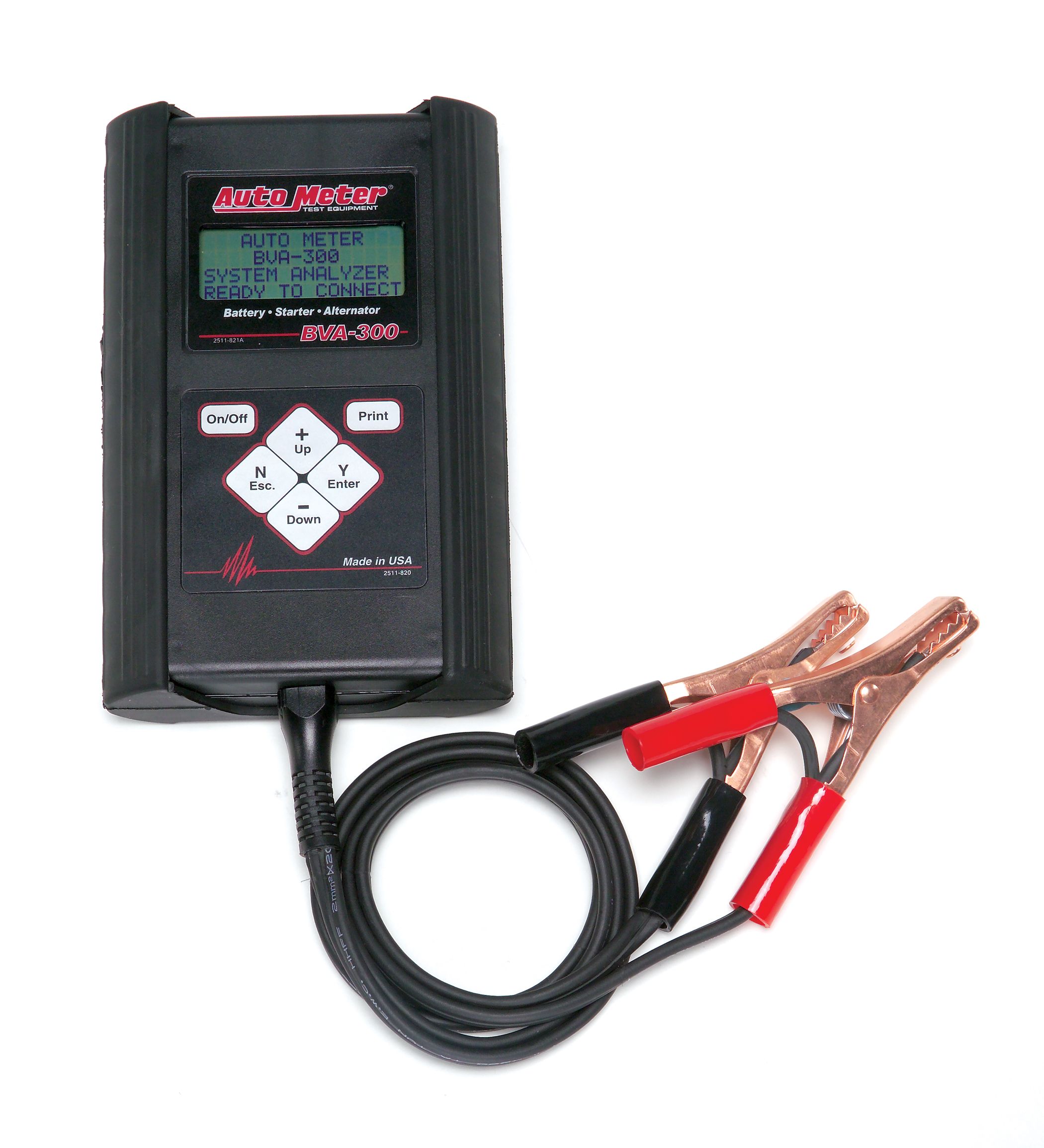

BVA-300; Intelligent Handheld Electrical System Analyzer For 6V & 12 Applications

BVA-300; Intelligent Handheld Electrical System Analyzer For 6V & 12 Applications

Product # BVA-300
$409.95

OR
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description

The BVA-300 is a Technician grade handheld electrical system tester that preforms a compete electrical system test in less than 82 seconds. Utilizing an on-board 40 amp load, the BVA-300 uses patented Digitial Pulse Load technology to fully test most batteries, starters and alternators completely.

Features:

  • Best of Both Worlds - Accuracy via Patented Resistance & Load Test
  • Tests flooded and AGM batteries
  • Fully Automated Load
  • Tests discharged batteres
  • Easy Input Menus
  • Tests starter draw and alternator output
  • Stores the last 50 tests in memory
  • Reverse polarity protection
  • 64 character 4 line LCD screen
  • 30"" - 16 gauge leads
  • Tough plastic case with easy-grip rubber boot
  • Customer communication with optional bolt-on PR-20 printer or PR-12 infrared printer or PC cable

ADDITIONAL NOTES

Feature Points

  • Tests flooded, deep cycle, and AGM batteries with CCA range of 100-1600 - also detects discharged batteries, bad cells, and has built in reverse polarity protection.
  • Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 40 amp True Load cell. This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. which makes o
  • Automatically stores the last 100 tests in memory.
  • 30" - 16 gauge leads with professional grade clamps that are easily field serviceable.
  • Customer communication with optional PR-12 (external printer), PR-20 (bolt-on printer), or AC-12 (PC cable).
  • English and Spanish language menus and test results.
  • Perfect tool box tester! Rugged engineered composite housing with protective rubber boot for years of service.
  • Intuitive menu driven operation, transmitted via back lit LCD screen for ease of use.
  • Utilizes advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery’s ability to provide adequate cranking power necessary to start the vehicle without the need for ti
  • Battery test results include: Measured true CCA, voltage and percent of charge, and the battery's state of health (good, near end of life, or bad).
SHIPPED WITH
Reviews
BVA-300; Intelligent Handheld Electrical System Analyzer For 6V & 12 Applications is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from works as well as your most expensive one works right along side our other Autometer and it does not need the other cables to test battery or alternator
Date published: 2018-08-25
  • y_2018, m_9, d_20, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_BVA-300, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_autometer-us
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 73.55ms
  • REVIEWS, PRODUCT
Questions

How much will this test in amp hours, need a tester to do 100 amp hrs @ 20 hrs, will this tester do this?

Asked by: Lee Allison
Hi Lee, thank you so much for contacting us. Unfortunately, we do not currently offer a tester designed to do a quick test of backup/reserve power lead acid style batteries that large. Our RC-300 tester is the only unit we have designed with those types of batteries in mind but it's capacity is significantly lower at 50Ah: https://www.autometer.com/rc-300-technician-grade-intelligent-handheld-sla-and-standby-battery-tester-for-6v-12-applications.html Sorry for the bad news.
Answered by: Joseph At AutoMeter
Date published: 2018-04-27
