BVA-230 Professional Grade Intelligent Hand Held Electrical System Analyzer Kit W/PR-12 PRINTER

BVA-230 Professional Grade Intelligent Hand Held Electrical System Analyzer Kit W/PR-12 PRINTER

Product # BVA-230PR

  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns

One of the most technologically advanced handheld testers currently available; the BVA-230 sets the bar for accuracy, speed and ease of use. Using our patented Digital Pulse Load™ technology to deliver a BCI compliant true load test, the BVA-230 can precisely diagnose the battery, starting and charging system in under 82 seconds. This unit is AGM optimized for compatibility with nearly all battery types. This adds up to a tester that in many cases delivers a superior test result to even traditional Carbon Pile testers. A convenient USB output allows test data to be displayed as an Excel™ spreadsheet for nearly unlimited storage capacity and data analysis as well as easy software updates. Featuring a menu system revised to eliminate extra steps, nearly anyone can pick up the unit and use it right out of the box. Enhanced customer communications and “next step” messages aid in diagnosis and enhance credibility.

  • Best of Both Worlds - Accuracy via Patented Resistance & Load Test
  • Fully Automated Load
  • Tests most battery and electrical systems - Flooded, AGM, Marine, AGM Marine
  • CCA and AH battery tests
  • Export data to PC memory for unlimited test results storage
  • Optimized customer communication for faster/better interaction
  • Mini USB Port
  • Easy-Link communication to PC via USB to optional AMP Link software (AC-62)
  • Self Diagnostics for improved reliability
  • Reverse polarity protected
  • 64 Character backlit LCD screen
  • Customer communication via optional USB PC cable or infrared pinter
  • Convenient clamp storage



Feature Points

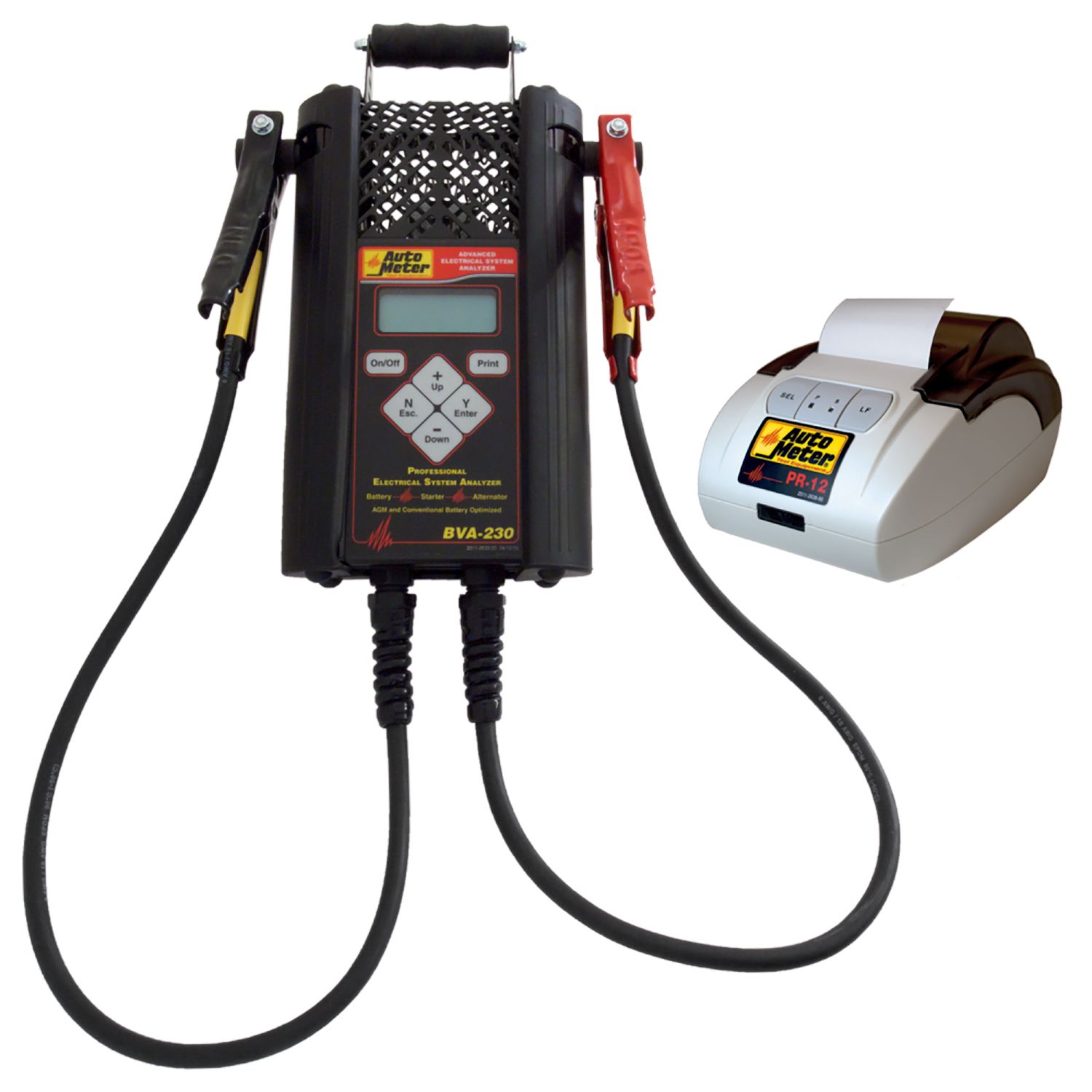

  • Kit includes AutoMeter PR-12 add-on thermal printer specifically designed to enhance AutoMeter Electrical System Testers by providing instant hard copy results and credibility.Additional Added value in packaging savings when purchasing kit.
  • Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells.
  • Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-12 cable.
  • Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 amp True Load cell. This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. which makes
  • English and Spanish language menus and test results.
  • Charging system test results measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result.
  • Easily upgraded for future tech enhancements using AutoMeter's exclusive AMP Link software.
  • Advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery’s ability to provide adequate cranking power necessary to start the vehicle without the need for time consum
  • True-Load – This AutoMeter equipment is unique compared with other products on the market in that this tester has the ability to apply a known significant load (True-Load) directly through the tester connections allowing for a more rapid and accurate test
  • 16 Gauge, 20" leads with professional grade clamps that are easily field serviceable
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 64.63ms
  • bvseo-msg: HTTP status code of 404 was returned;

Our store " O'Reilly autoparts " has the bva-230 , the update port is messed up from people not seeming to know how to put a simple plug into a device . Does autometer repair these ports ???

Asked by: Dimi
Thank you for your question. You will need to call our Tech Support team at 866.248.6357 because we have a contract with Ozark and handle repairs a little differently for O'Reilly stores than we would typical repairs.
Answered by: Zach from AutoMeter
Date published: 2018-11-28

Hello. I have one of these meters where I work (FleetPride) and for a number of years it worked great. However now as soon as you attach it to a battery the bottom coil starts glowing red and at times will even smoke. It will not test correctly.

Asked by: LostStar1969
Thank you for your question. To best help you and your situation we will need to exchange more information. Please call us at 866.248.6357 or email us here: https://www.autometer.com/contacts
Answered by: Zach from AutoMeter
Date published: 2018-10-15

I have one of these meters and as soon as I attach it to a battery the bottom coil very quickly is glowing red hot. It didn't do this before and now it reads every battery as faulty.

Asked by: Sara TG
Hi Sara, thank you for contacting us. We would recommend reaching out to our Technical Support Team at 866-248-6356 to go over a few troubleshooting steps, but we'll likely need to issue you an RMA to return the tester to us for evaluation.
Answered by: Matt from AutoMeter
Date published: 2018-09-20
