At AutoMeter, we’re proud to offer gauges that are built for precision, durability, and outstanding performance. When you power up your new AutoMeter gauge and see it light up, it’s a great first step toward unlocking the full potential of your vehicle’s instrumentation.
To help you get the most accurate and consistent readings possible, a critical part of the installation process is ensuring a strong, clean ground connection. Choosing the right grounding point can maximize your gauge performance and set you up for success. Here’s what our experts recommend when it comes to grounding best practices.
What Works BEST:
For reliable performance with your electric gauges, we recommend grounding to:
- The engine block/cylinder head/intake manifold
- The vehicle frame
These grounding points typically offer lower resistance and better continuity back to the battery ground, especially when cleaned and secured properly.
Common Grounding MISTAKES:
Some of the most common improper grounding locations we see include:
- Dash ground or a shared dash circuit
- A random bolt on the firewall or interior metal
- Tapping into an existing ground wire (especially on older vehicles)

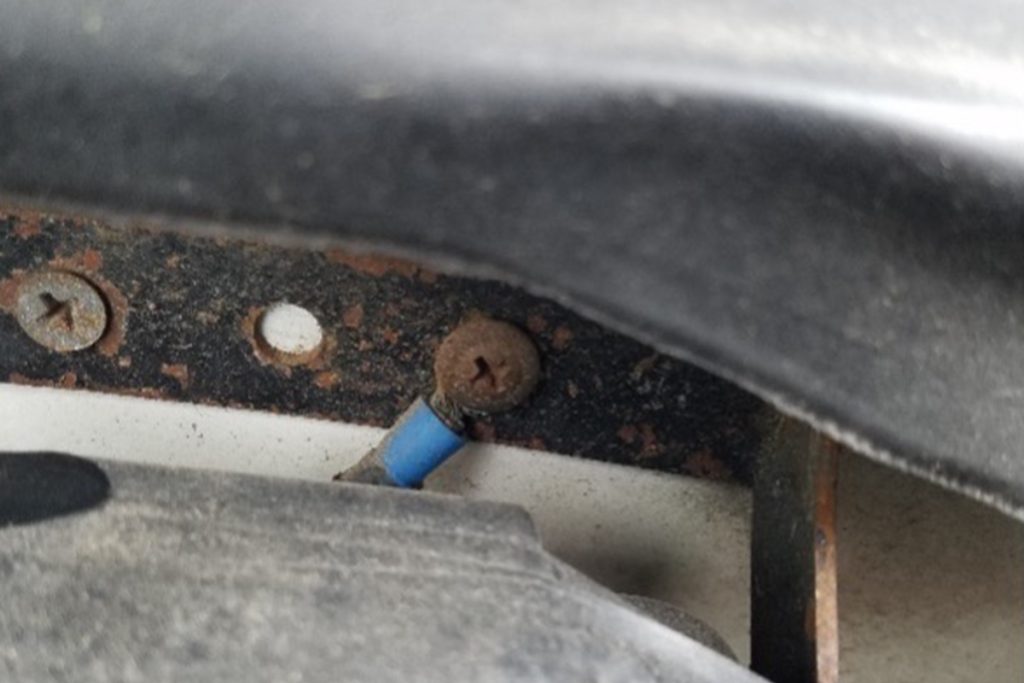

- Grounding to a painted or rusty bracket using an insulated connector and old hardware
While these might be technically “grounded,” they often don’t provide a clean, uninterrupted ground, and that’s where problems start. Electrical noise, poor continuity, or resistance buildup can create signal instability.
the area painted over after assembly to protect it.
Pro Tips:
- Ground to the engine or frame, not the battery
- Avoid interior bolts and painted surfaces
- Use a star washer and test for <0.2 ohms resistance
- Keep wiring clean and away from high-interference sources
- Test with a multimeter to confirm less than 0.2 ohms of resistance between your ground and battery ground
Our friends at PRI also covered a great set of tips in a recent post by AutoMeter’s own, Cory Villani. If you’re looking to go deeper into wiring techniques and common pitfalls, we highly recommend checking it out: PRI Tech: Wiring Tips and Tricks – Performance Racing Industry
Final Thought:
Just because a gauge lights up doesn’t mean it’s grounded properly. A solid, clean ground can make the difference between frustration and flawless performance. Don’t let a weak ground stand in the way of your ride’s full potential!
