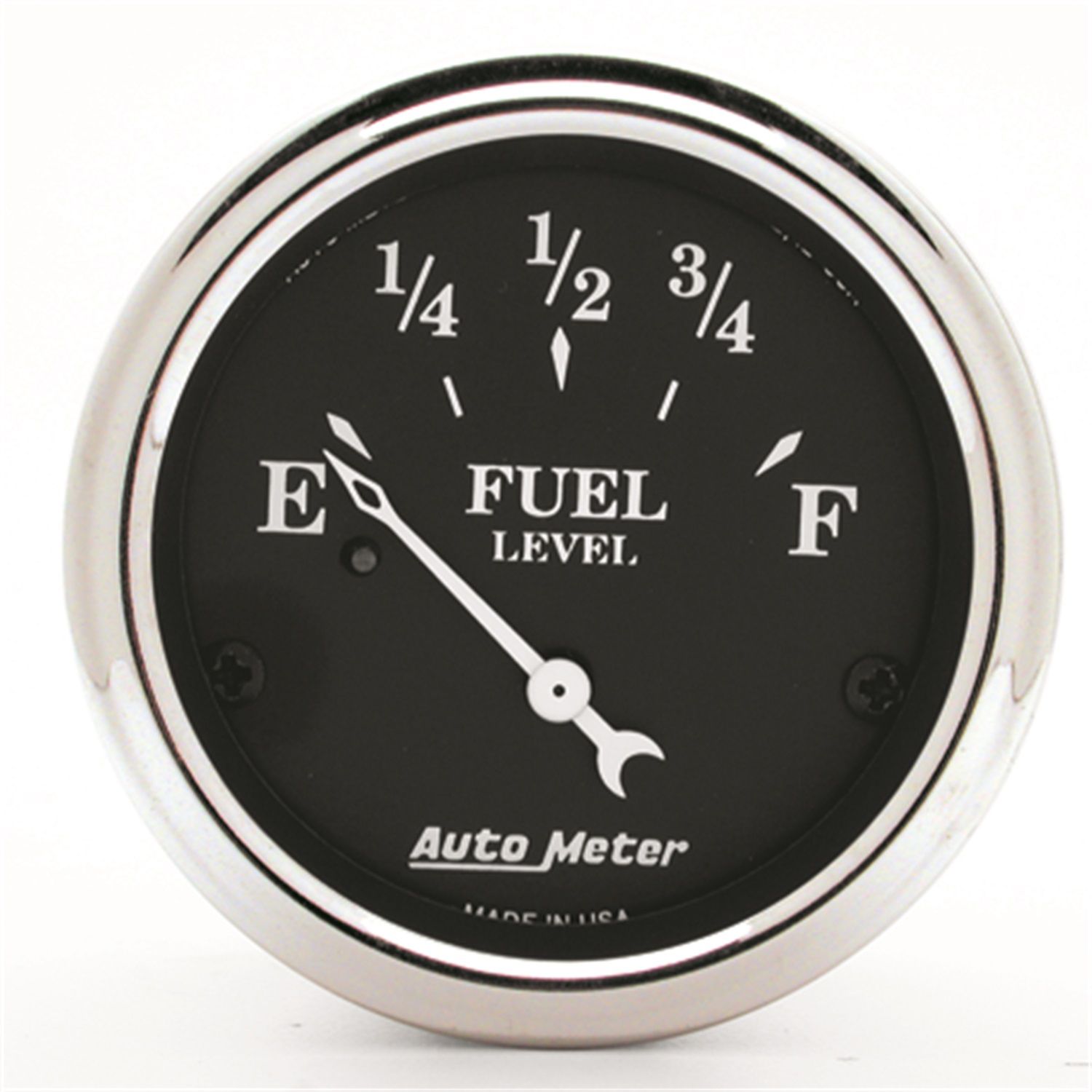

2-1/16" FUEL LEVEL, 0-90 Ω, AIR-CORE, OLD TYME BLACK

Special Price $51.73 was $57.48
Shipping in 5 business days
Free Shipping over $99
Hassle Free Returns

Description:

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Quick Specs

  • Size:2-1/16" (52.4mm)
  • Type:Air-Core
  • Range:0 Ω Empty / 90 Ω Full
  • Lightning:Incandescent
  • Instructions: Download PDFDownload PDF

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.

Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most 1965 to 1997 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Ships With
  • 2230
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

REVIEWS:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 80.19ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

QUESTIONS:

what is the dept of this gauge?

Asked by: danstang
Thank you for your question. The depth of the gauge is 1-9/16". The depth of the gauge with studs is 3".
Answered by: Steve from AutoMeter
Date published: 2020-03-03

I have a fuel gage with a P/N 1717-0000-60. What ohm range would that be? Thank you

Asked by: Mikey138tracy
Thank you for your question. That is the internal part number for the meter movement inside the #1717 fuel level gauge. Assuming you got that number off the gauge somewhere, then your gauge would be the #1717 which has a range of 240ohms at empty and 33ohms at full
Answered by: Zach from AutoMeter
Date published: 2019-03-06
