SENSOR KIT, PRESSURE, 15 PSI, 8 FT. HARNESS, FOR ULTIMATE DL

$177.95
Shipping in 2 business days
Free Shipping over $99
Hassle Free Returns

Description:

1

Quick Specs

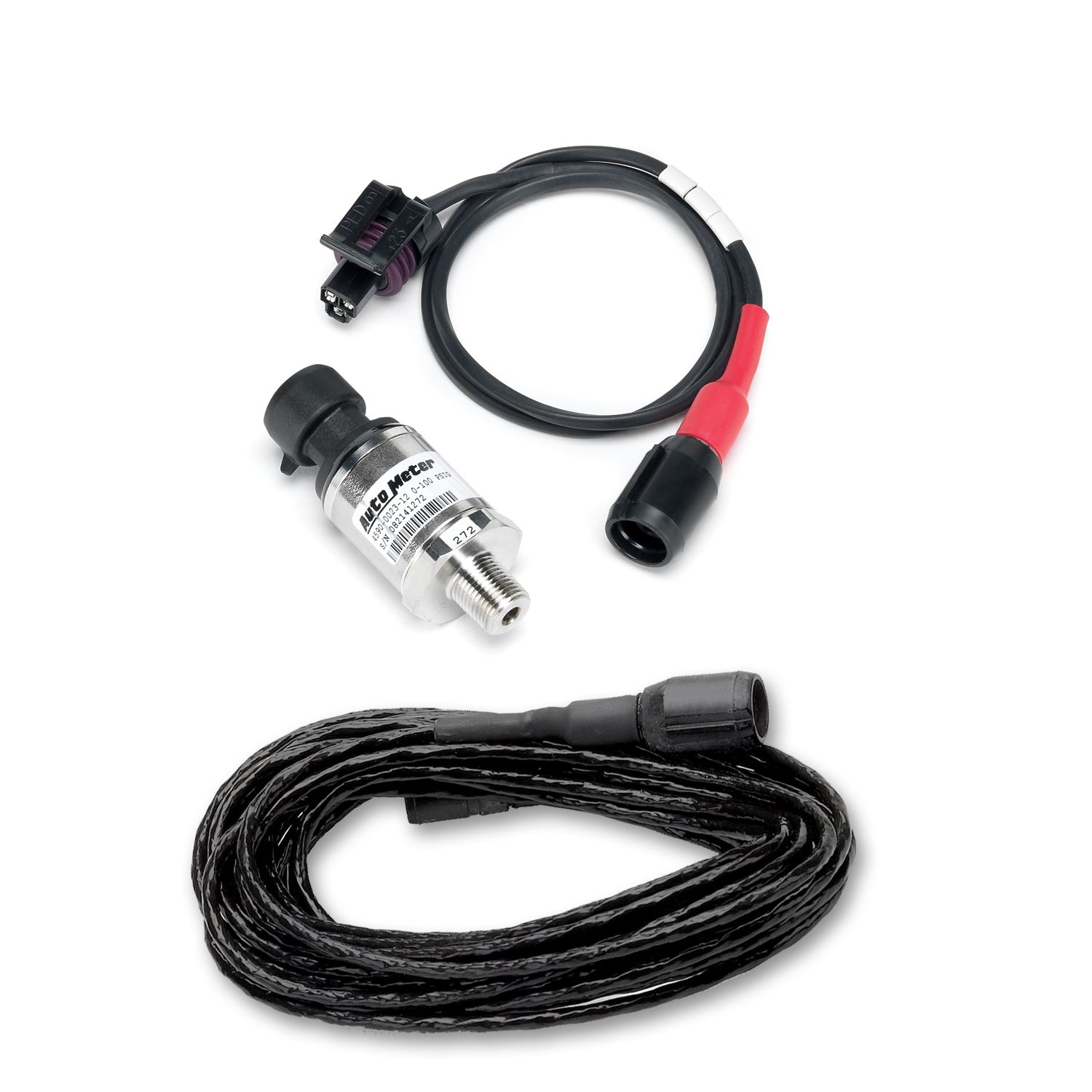

15 PSI Pressure sensor and 8ft cable kit for Ultimate DL tachometers
Feature Points
  • Solid state, data acquisition quality sensor
  • 8ft motorsport grade harness
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

REVIEWS:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 101.66ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

QUESTIONS:

do you have a gauge to go with this senser

Asked by: terry b
Hi Terry, this specific model 9134 includes a special harness and connector for an Ultimate DL data logger tachometer. This sender alone is model 2245 and is most commonly included with our 15 psi electric fuel pressure gauges like model 3361, 4361, 4461, and several others.
Answered by: Matt from AutoMeter
Date published: 2018-07-26

looking for a electric fuel pressure sending unit. What would be the ohm range for this product? Is it compatible for gasoline? Does it have to be grounded?

Asked by: nwticerider
Thank you so much for contacting us. This particular unit is voltage based. It will output 0.5v at 0 PSI and 4.5v at 15 PSI. There are three wires going to the sender, one of which provides its ground, one for a 5v reference and one for the return signal to the gauge/device. It is compatible with gasoline (race and pump), as well as diesel, alcohol (ethanol/methanol) and nitromethane. Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-01-30

I only want the fuel pressure sending unit 0-16lbs.

Asked by: Reed5488
