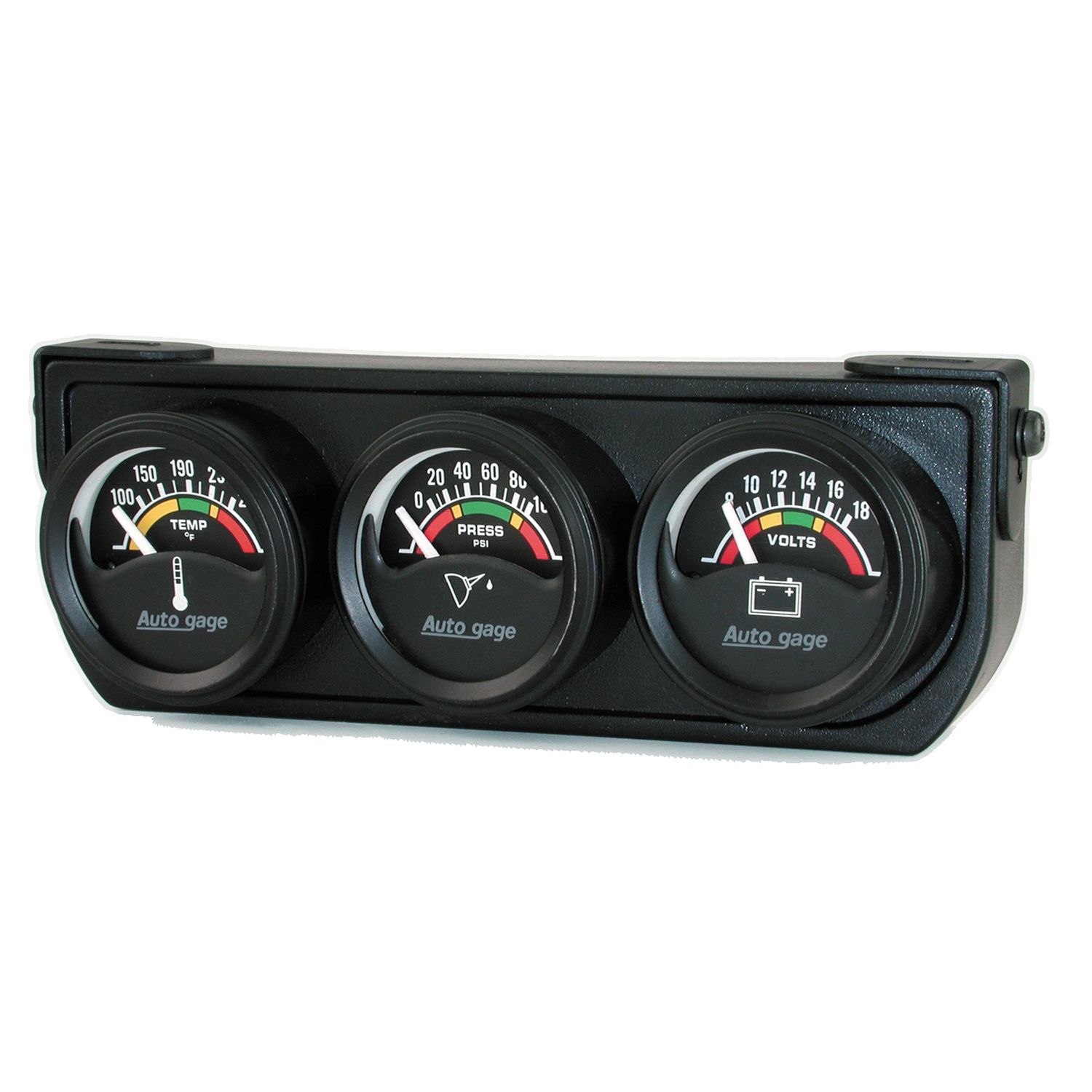

GAUGE CONSOLE, OILP/WTMP/VOLT, 1.5", 100 PSI/280 °F/18V, ELEC BLK DIAL, BLK BZL, AG

GAUGE CONSOLE, OILP/WTMP/VOLT, 1.5", 100 PSI/280 °F/18V, ELEC BLK DIAL, BLK BZL, AG

Product # 2391

$84.95

Qty:

Add to Wishlist

SIZE:1-1/2" (38.1mm)
TYPE:Air-Core
RANGE:0-100 PSI/0-18V/100-280 °F
LIGHTING:Incandescent
INSTRUCTIONS: Download

Ships in 5 Business Days
Free Shipping Over $99*
Hassle Free Returns

Description

Getting great performance or saving money doesn’t have to be choice. Engineered by AutoMeter in Sycamore, IL, The Auto Gage line of instruments provide the best bang for the buck performance in the industry. For a fast street car or a weekend racer, Auto Gage provides levels of accuracy and durability unheard of in the price category. With countless wins in magazine comparison tests, the best value in gauges comes from exactly the place you’d expect it to. AutoMeter.

ADDITIONAL NOTES

Feature Points

Includes bulb and socket assembly with red and green bulb covers

SHIPPED WITH

Sending Units

Oil Sender 2242 - Water Sender - 2385

Adapter/Fitting

3/8" NPT and 1/2" NPT adapter fittings

Bulb & Socket

2388

Mounting Hardware

Bracket Included

Reviews

Questions

I have the 1.5" auto gauge cluster. (Oil pressure, Water Temp, amps) The oil pressure gauge is faulty. Can I purchase just this one gauge or does the cluster need to be replaced?

Asked by: DaleW

Thank you for your question. The oil pressure gauge is available by itself as #2354.

Answered by: Zach from AutoMeter

Date published: 2019-04-08

Will this work on a 1998 Nissan Frontier? My gauges quit on me.

Asked by: Jesse

Thank you for your question. These gauges are made for universal applications. You may need additional fittings or adapters for your specific application, but the gauges should certainly work.

Answered by: Zach from AutoMeter

Date published: 2019-03-06

What are the dimensions of the gauges. Would like to replace the stock factory gauges with these gauges in the cluster. 68 Chevy C20. Currently it has a mechanical oil, Ammeter gauge. The water temp is not working so I was going to modify stock cluster.

Asked by: 68 Dixie

Thank you for your question. The dial face has a diameter of 1-1/2" with a depth of 1-1/2" for the individual gauges.The outside diameter is 2-5/16"

Answered by: Zach from AutoMeter

Date published: 2019-02-28

What adapters do I need for installation on 1990 Mazda B2600 pickup?

Asked by: Vern2

Thank you for your question. Unfortunately, we do not have vehicle specific installation instructions. While we do not have information specific for your application, we are certainly willing to help you get what you need. If you contact our support team, they would be happy to assist you with this. You can call them at 866.248.6357 or submit a contact request form here: https://www.autometer.com/contacts

Answered by: Zach from AutoMeter

Date published: 2019-02-11

I purchased this set last year and really like it, however, I need to relocate the water temp sensor. Is there an adapter for the sensor that can be put inline with the radiator or heater hose? Also, can you tell me the water temp sensor thread size? Thx!

Asked by: Jon S

Hi Jon, thank you for the question. The 2391 water temperature sensor is 1/8" NPT. This will thread directly into our Heater Hose Adapter. Our Radiator Hose Adapter features a 3/8" NPT port and will require model 2284 to adapt the 2391 sender.

Answered by: Matt from AutoMeter

Date published: 2019-01-29

looking for electrical gauges was referred by parts guy to use 2391 set, however i need a fuel gauge and tsch to match but csn't seem to find it on your webpage. can you help me out with this please?

Asked by: poppie

Hi Poppie, thank you for the question. There is no matching fuel level in the 1.5" AutoGage. The complimentary tachometers would be the 2300 (3-3/4") or 2305 (2-3/4"). If you were interested in an electric 3 gauge set with a matching fuel level, we'd refer you to our AutoMeter line. You'd have to purchase everything individually, then we do sell the panels separate. We have many style options in the AutoMeter line, but something comparable to the AutoGage series would be the Z-Series. If you have additional questions or would like help selecting model numbers, give us a call at 815-895-8141 or send us an email anytime here: https://www.autometer.com/contacts

Answered by: Matt from AutoMeter

Date published: 2018-11-20

is the mount open back or closed

Asked by: bryan1

Thank you for your question. 2391 gauge console has a completely open back. For further questions, including dimensions and installation support, please contact our tech team here: https://www.autometer.com/contacts

Answered by: Zach from AutoMeter

Date published: 2018-09-27

DO YOU HAVE REPLACEMENT BULBS FOR AUTO METER 2391 MINI TRIPLE GAUGE UNIT? THANK YOU.

Asked by: CARNEY

Hi Carney, thank you so much for contacting us. The replacement bulbs for the 2391 can be found here: https://www.autometer.com/bulb-socket-for-1-1-2-mini-gauges.html Hope this helps!

Answered by: Joseph At AutoMeter

Date published: 2018-07-24
