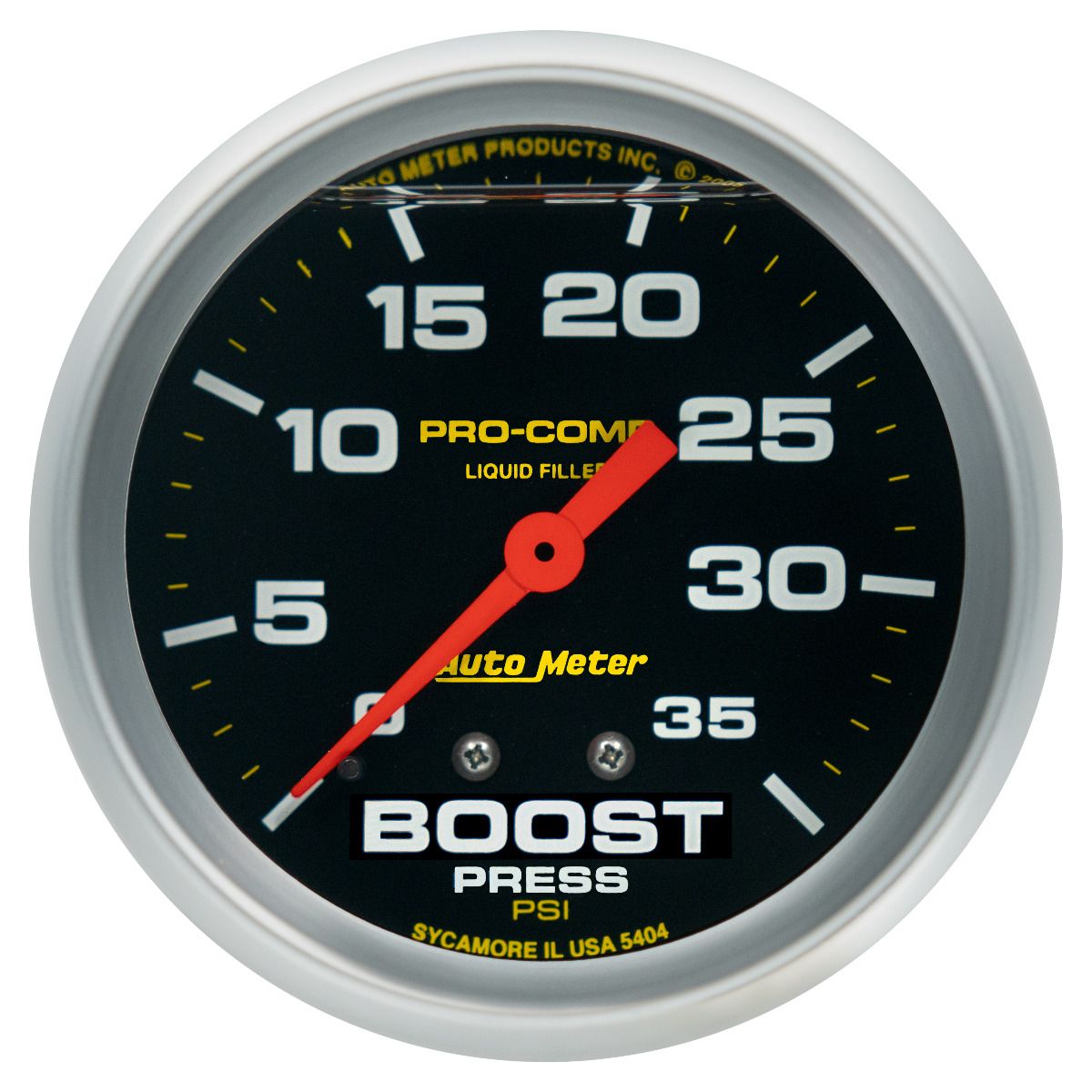

2-5/8" BOOST, 0-35 PSI, MECHANICAL, LIQUID FILLED, PRO-COMP

2-5/8" BOOST, 0-35 PSI, MECHANICAL, LIQUID FILLED, PRO-COMP

Product # 5404
$102.95

OR
  • 2-5/8" (66.7mm)
  • Mechanical Mechanical
  • 0-35 PSI
  • Incandescent
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description
Mechanical boost gauges have become the staple in boost pressure monitoring for all types of engines, gasoline, diesel, or otherwise. Ultra-precise bourdon tube meter movement ensures accuracy and durability not seen anywhere else in the industry. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
ADDITIONAL NOTES

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
  • Liquid filled design for superior resistance to shock, vibration, and the elements.
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
SHIPPED WITH

Adapter/Fitting

  • 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing

Tubing

  • 10 ft. nylon tubing

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 3245
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 46.29ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

what is the liquid in the gauge?

Asked by: sidewinder Bob
Hi Bob, thank you so much for contacting us. Our liquid filled gauges use a 350 CS silicone dampening fluid. This is actually very common in shocks for RC cars and is available through most hobby shops. Our service department also has small quantities for sale. Hope this helps!
Answered by: Joseph Mills
Date published: 2018-03-28

Hi , I have a pro-comp silver LFG boost auto meter for my turbocharged wide glide Harley Davidson. It sits in a chrome bracket. It requires a lock ring to keep it from sliding out. Mine is missing. Can you help ?

Asked by: Papa...
Thank you so much for contacting us. Unfortunately, that mount doesn't sound like something we manufacture. Our chrome mounting cup for 2-5/8" liquid filled gauges uses tension on the strap mount itself to secure the gauge into the cup. We do not imply any sort of lock ring. You can see what it looks like here: https://www.autometer.com/2-5-8-mounting-cup-lfg-chrome.html I'm sorry we couldn't be more helpful.
Answered by: Joseph At AutoMeter
Date published: 2018-02-19
