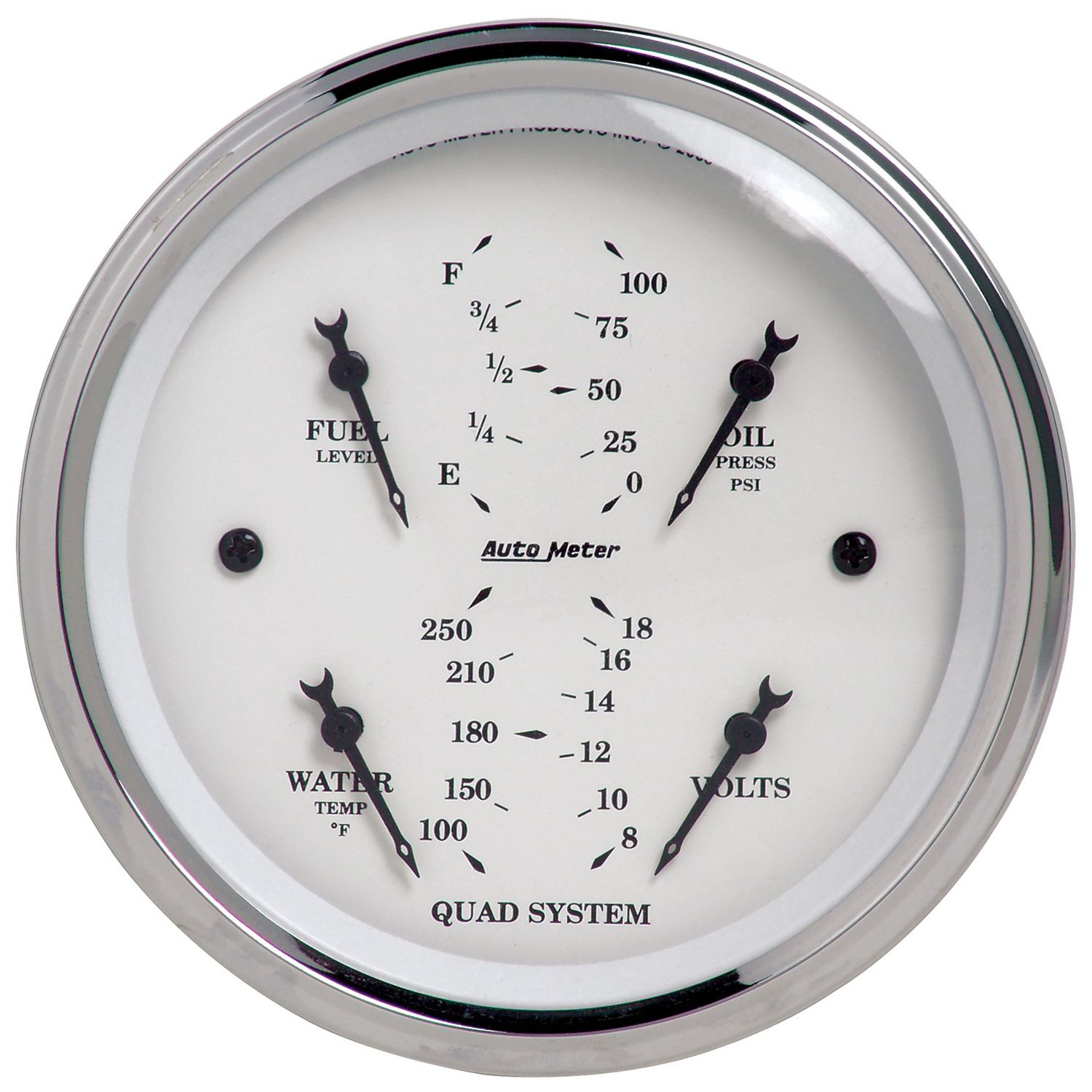

3-3/8" QUAD GAUGE, 100 PSI/100-250 °F/8-18V/240-33 Ω, OLD-TYME WHITE

3-3/8" QUAD GAUGE, 100 PSI/100-250 °F/8-18V/240-33 Ω, OLD-TYME WHITE

Product # 1612

  • 3-3/8" (85.7mm)
  • Air-Core Air-Core
  • 100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Sending Units

  • Oil Sender 2242 - Water Sender 2258


  • 3/8" NPT and 1/2" NPT adapter fittings

Bulb & Socket

  • 3211

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • Brackets Included
